Understanding Door Hinges: Pivot, Pneumatic, and Hydraulic Compared



What is the function of door hinges?

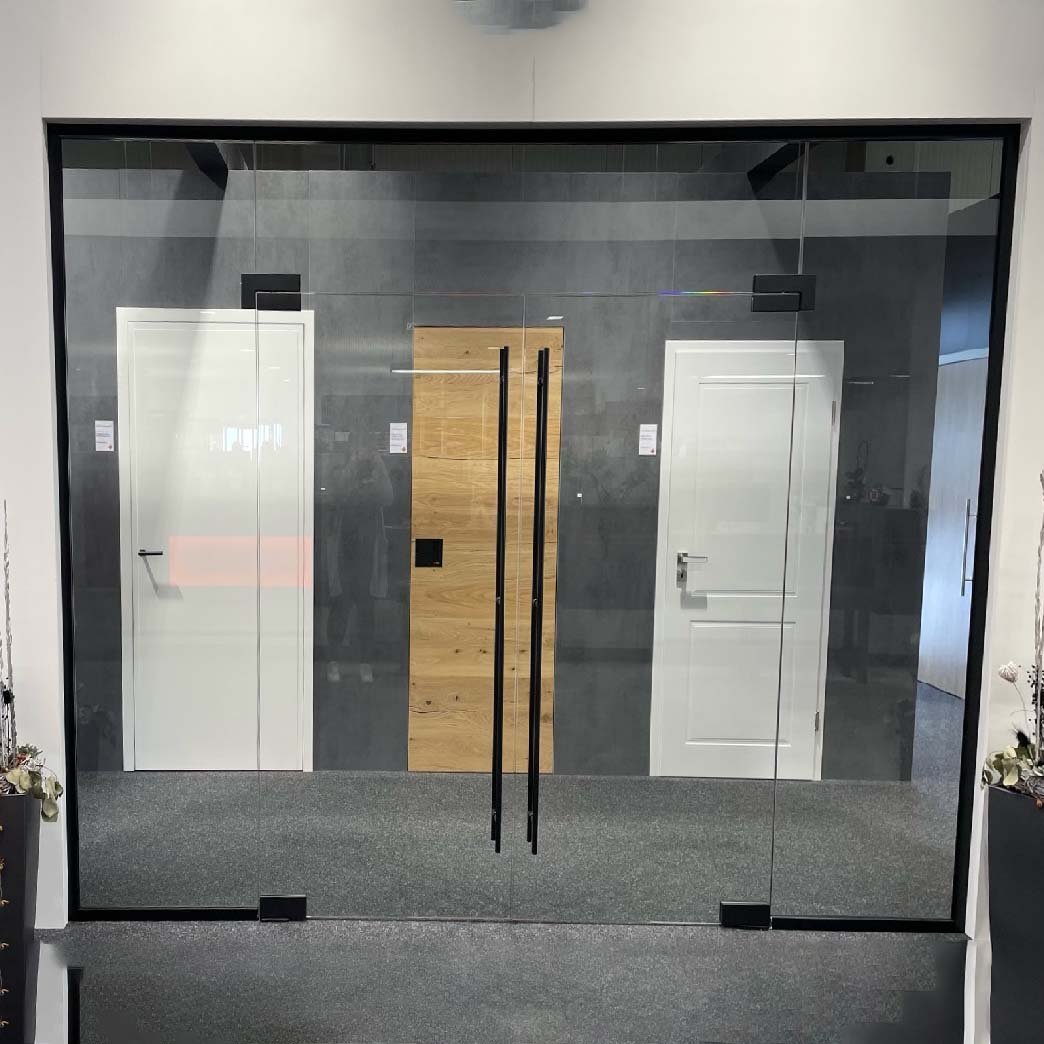

Hinge is the key to connect the door to the frame . It act as the pivot point where door move to open and close. Different type of hinge can decide if the door can be swing one way (single swing) or swing both sides (double swing). The hinge can also install on different position of the door depanding on the enviroments. For example if there is weak frame, then install the hinge onto the floor and ceiling might be one options.

How Hinges differ and why are they important?

Key points when choosing which type of hinges can be looking at 3 perspectives: function, durability and installation enviroments.



Pivot hinge-Manual Motion Control :

• Function - Only working as pivot point, the door only moves when outside force apply to the door.
• Durability - This type of hinge design without high risk components such as spring or seal, there is a very long life cycle.
• Installation environments – Residential: or Non-Self-Closing Zones Ideal for private homes

Spring/ Pneumatic hinge- mandatory for climate control, privacy, or safety:

• Function – A self close mechanism is included, usually spring driven or pneumatic gas spring inside to create force to assist door close at certain degree.
• Durability – Limited life cycle , normally 3~8 years depending on the design of the spring. Critical factors of the spring is material, shape & design, heat treatment. Door weight is highly related to the spring size, the higher weight of the door, the larger size of spring it requires.
• Installation environments – Self closing function is a must. Privacy & Professionalism is critical. Private offices, conference rooms, or medical clinics.

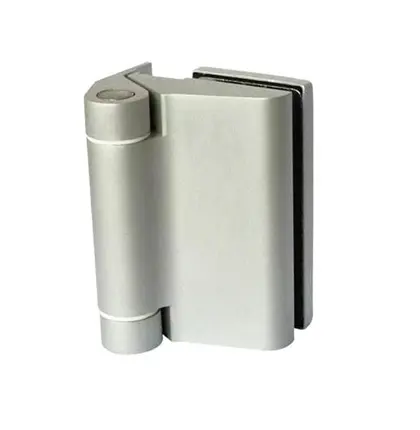

Related Product : Penumatic Hinge

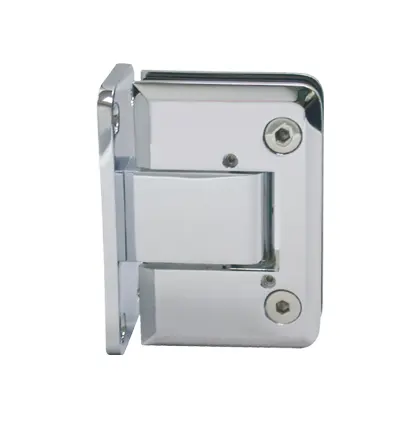

Related Product : Spring Hinge

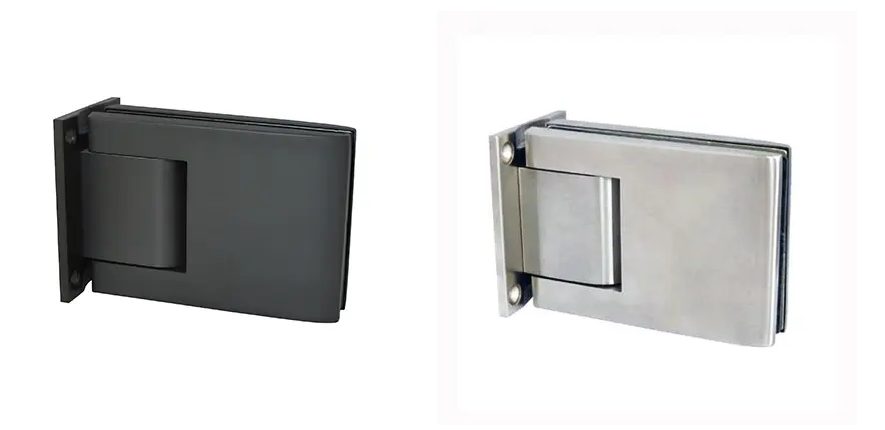

Hydraulic hinge :

• Function – Aside from the self close mechanism like spring hinge, the hydraulic hinge with additionally softly and slowly effect. Smooth operation provide controlled closing to your door, ensuring every closing movement is soft and smooth. Optimal silence-There will never be a sudden shut to cause noise when the door is pushed by hand or the wind. After the correct setting, the door will always close slowly using its hydraulic features.
• Durability – Typically is includes larger size of hinge body to include spring, oil. Sizable spring can withstand higher door weight as well as higher durability can be meet.
• Installation environments –Friendly to youth and elders: If you want a safe surrounding for your home, the hydraulic hinge is the only option for you to protect the young and the elderly. Even when the door is forced quickly by something like wind blowing, or the spring force, the door will not slam shut and create any risk to the people nearby or passing through.
