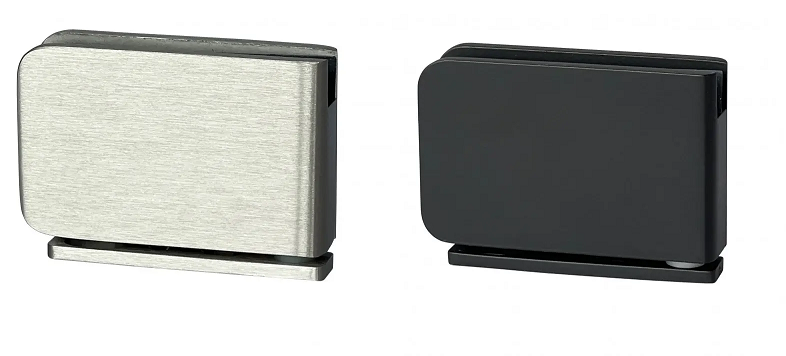

SH-420 Solid brass cabinet pivot hinge
3-Ways adjustable solid brass cabinet pivot hinge
SH-420
- Glass door lean closely to shelf
- Easy 3-Ways adjustments : horizontal +4 mm, height +4mm, alignment +/-2 degrees after door is installed
- Hold the door precisely in closed when shut
- Interchangeable for right hand and left hand on job site for lower inventory.
- Loading capacity: top+bottom hinges for maximum cabinet glass weight 50kgs (110lbs) , maximum cabinet glass width 800mm.
Specification

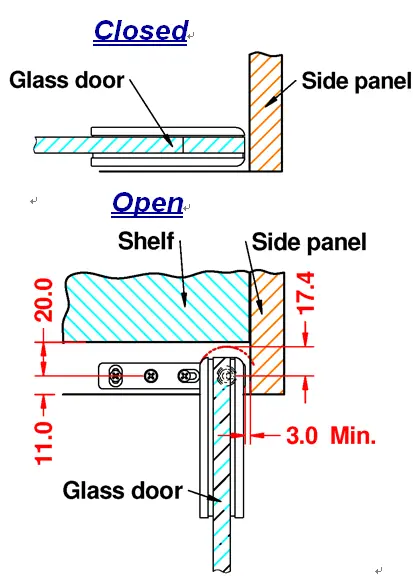

Dimension (unit : mm)
