Hydraulic Self-Closing Butt Hinges
Hydraulic butt hinge
SH-851
- Patented in many countries
- Single action internal wood/ aluminum framed/ steel door with 90 degree hold-open.
- Pass 500,000 cycles in-house durability test with excellent product performance
- High standard product specification using #304 stainless steel material and 2pcs of heavy duty precision bearings
- Adjustable closing speed
- Elegant alternative to floor closer, easier and low cost installation (no need to break the floor), and low maintenance costs
- Self-closing hinge with genuine hydraulic bumper, patent structure with no risk of losing buffering function upon sudden external forces (hand pushing)
- Maximum loading capacity : 60kg (132lbs) per pair
- Easy and effective adjustment ± 10° after door is installed when door is not lined up with side panel or frame
- 75-90° hold open, self closing at 70 ±5 degree, and door closing precisely at 0°
- Available finishes: brushed stainless steel and polished stainless steel

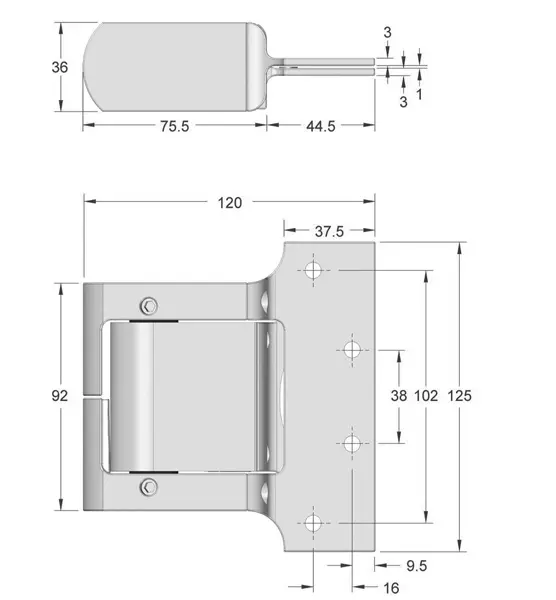

Dimensions: (unit: mm)
