630 Series
Panic exit rim device
6301
- UL-listed panic exit device
- Especially for use with narrow 2" width stile metal doors
- Latch bolt throw 1/2"
- Dogged by cylinder key or by slotted screw in bottom of inside pads
- Standard unit fits doors up to 48" in width, cutting the crossbar to fit
- Units are mounted on door with concealed screws

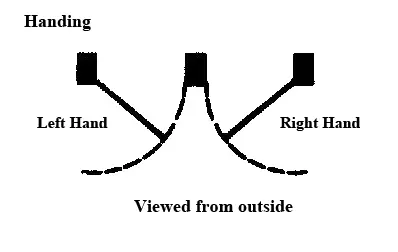

- Looking from outside, please specify left or right hand (for example, 6301-01L)
- Device can fit any standard rim cylinder
- Finishes: AL, BLK and DU (aluminum pads in baked paint,aluminum cross bar in anodized)

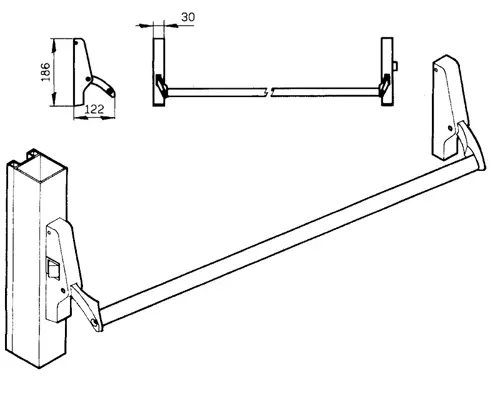

Dimensions: (unit: mm)

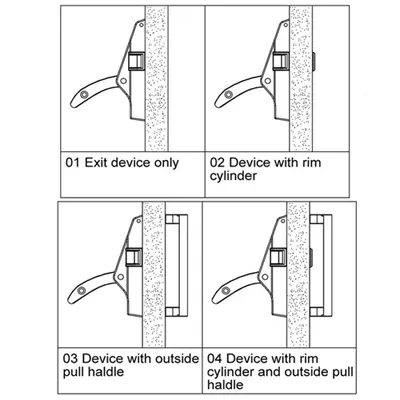

Accessories
