ED-690 & ED-700
Touch bar exit rim device, fire rated
ED-690F
UL ANSI/BHMA A156.3 Grade 1 Approved, 3 Hours fired rated
- Size: 33” standard for door width of 2’8” to 3’0”; 45” standard for door width of 3’8” to 4’0”.
- Door thickness: 1-3/4” (45mm) Standard for wooden or metal doors, please specify if other than 1-3/4”(45mm).
- Stile: 4-1/4” (108mm) minimum
- Projection: 2-1/2” maximum ~ 1-7/8” pressed.
- Backset: 2-3/4” (70mm) from edge of door
- Handing: Non-handed (Reversible for left hand and right hand use)
- Recommended mounting height: 40-5/16” (1024mm) from finished floor to center line of push bar
- Mounting: furnished standard with sheet metal and machine screws or SNB (sex nut & bolt) for fire rated exit devices as optional.
- Different types of outside trims are available
- The alarm kit is available.

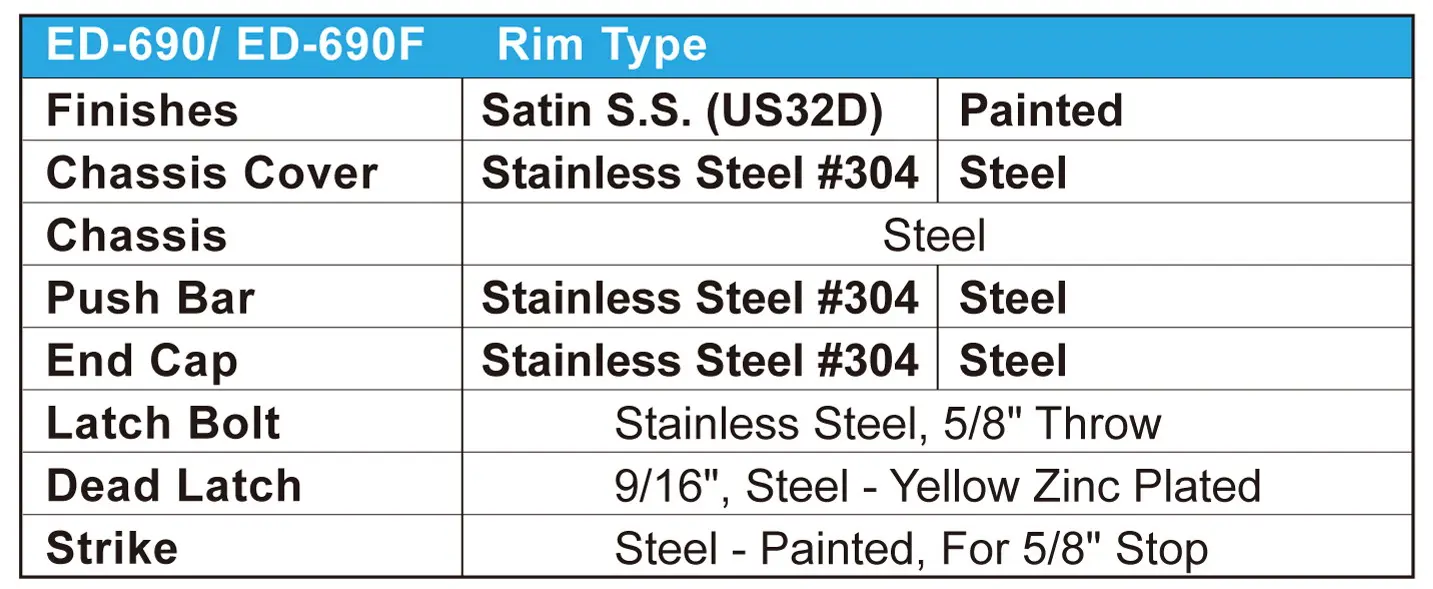

Material:

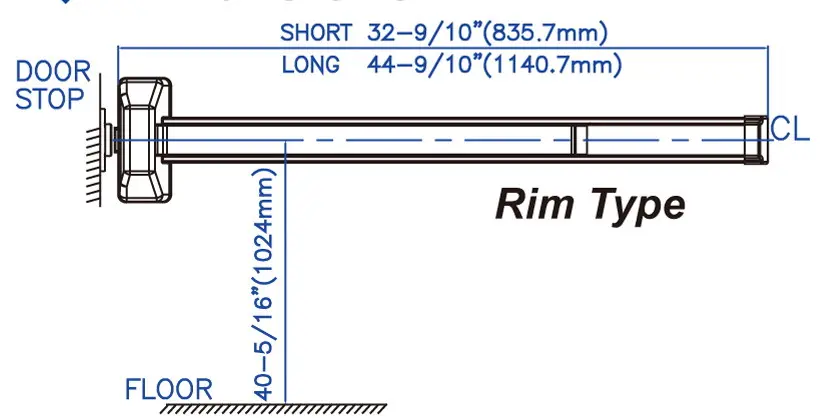

Dimension: ( unit: mm )

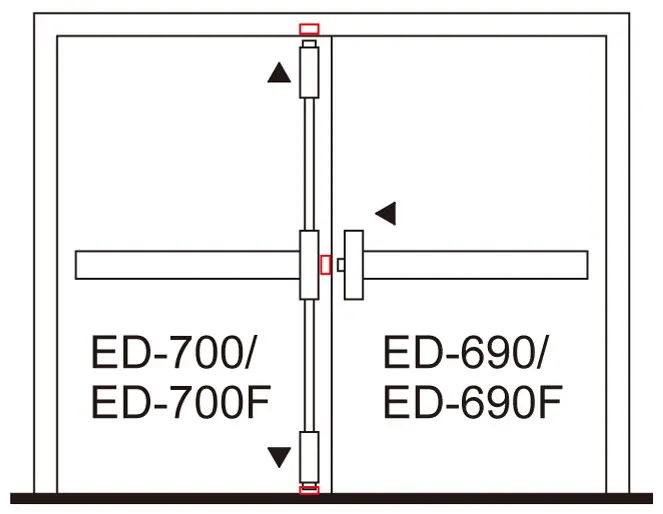

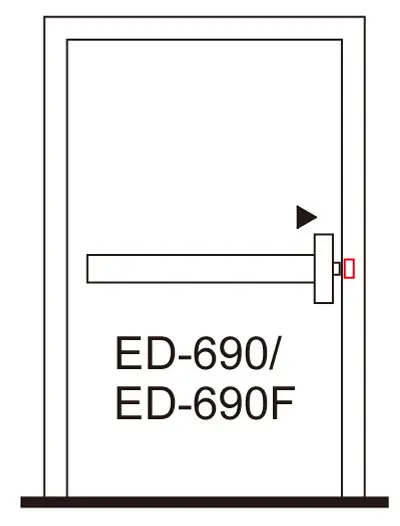

Installation application:
