Piston Pivot Hinges
Adjustable solid brass pivot hinge
SH-247AD

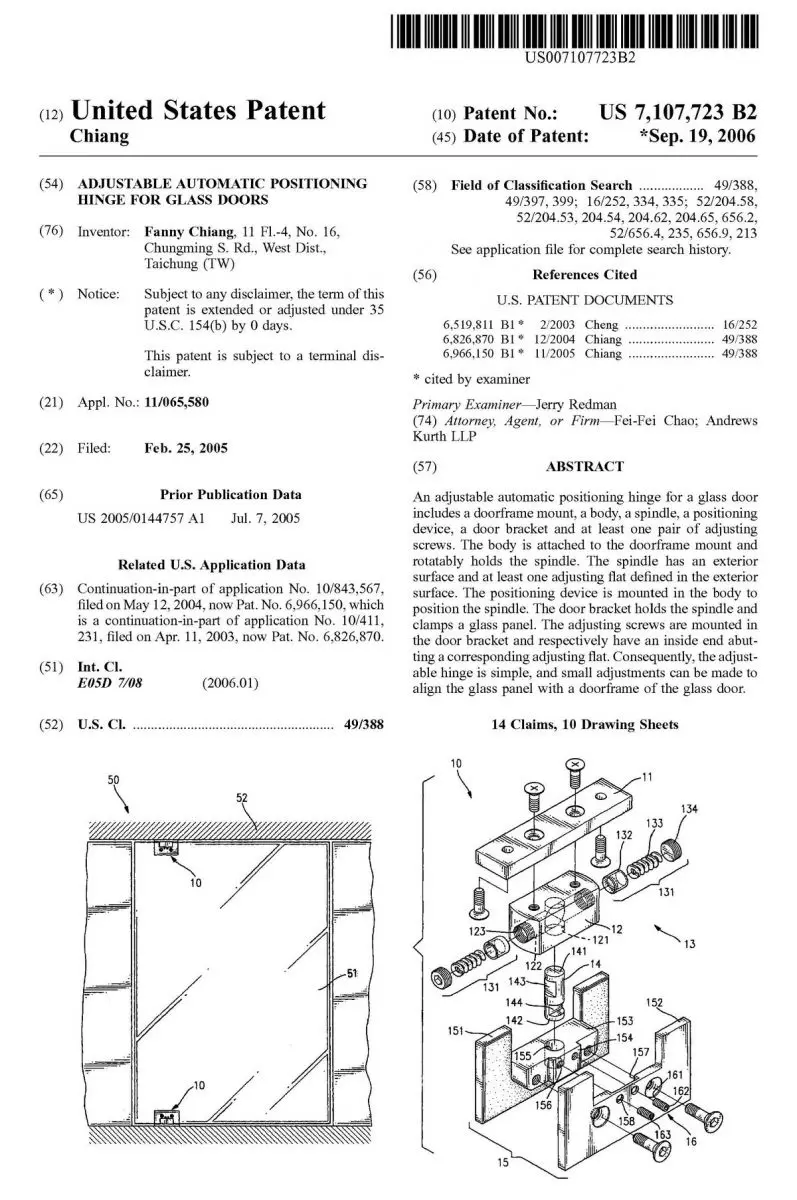

- Patented in many countries
- Wall mounting with non-handed horizontal pivot bracket
- Radius corners and chamfered edges
- Suitable for glass thickness 3/8 to 1/2-inch (10 to 12mm), for 5/16-inch (8mm), please specify upon ordering
- Longer durability
- Self-closing around 25°
- Hold precisely on close position
- Simply loosen one side of the allen screw to adjust the door to desired angle and closed position, to have the door close completely against the jamb adjustable degree ±15°
- With adjustable spring force
- Loading capacity: 2 hinges for maximum door weight 50kgs (110lbs) for tempered and non-laminate glass

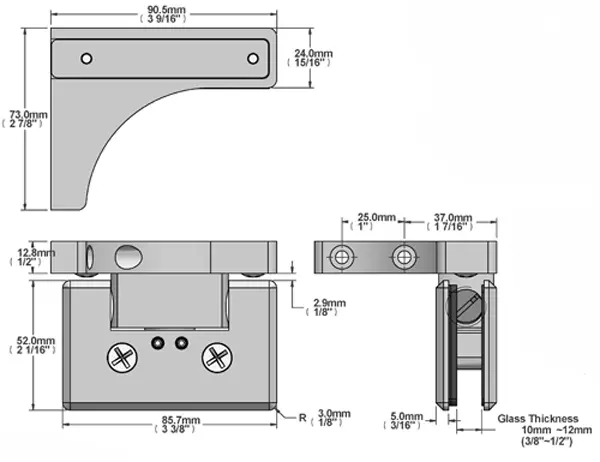

Dimension (unit : mm)

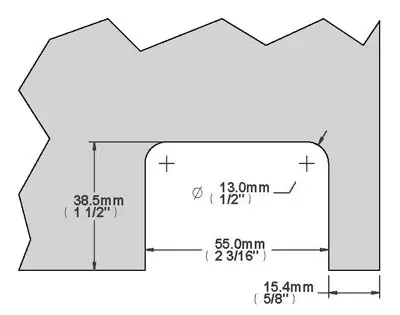

Cut out (unit : mm)
