Manual Sliding Door System
Aluminum sliding door system for wooden door
Lyon series

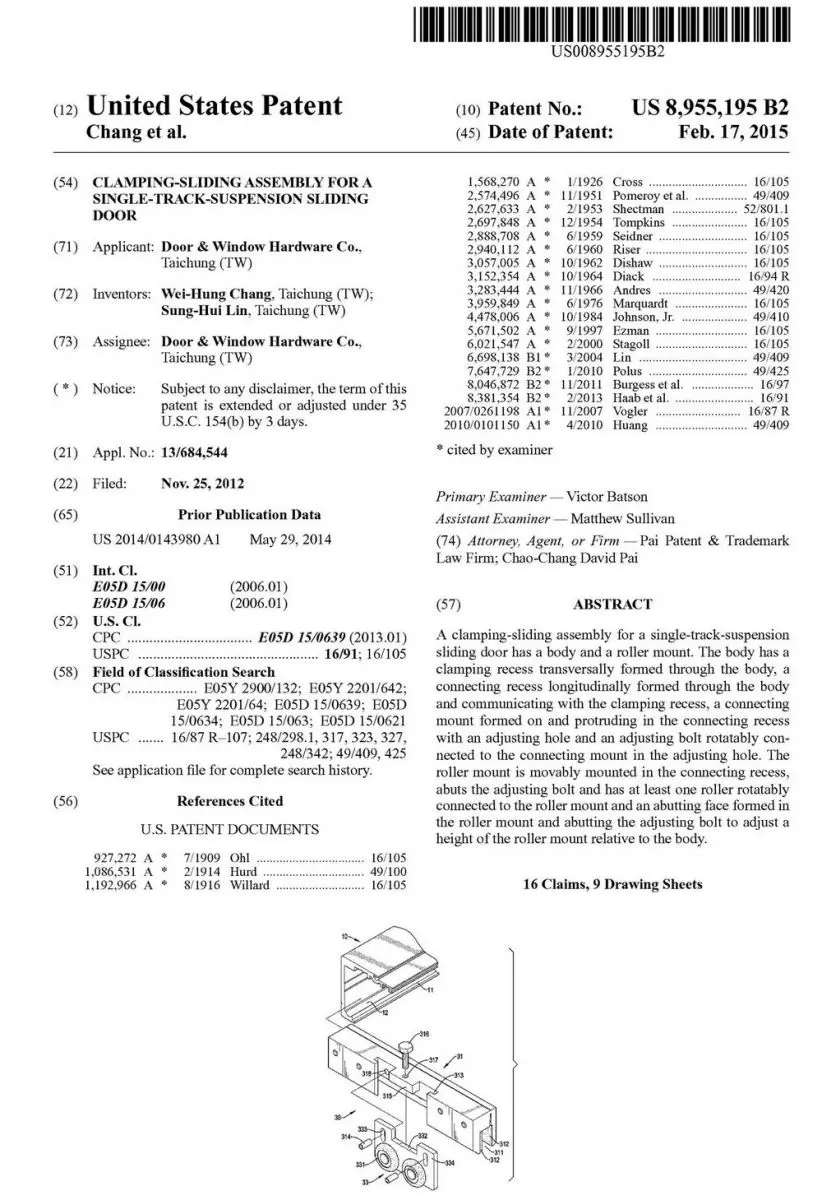

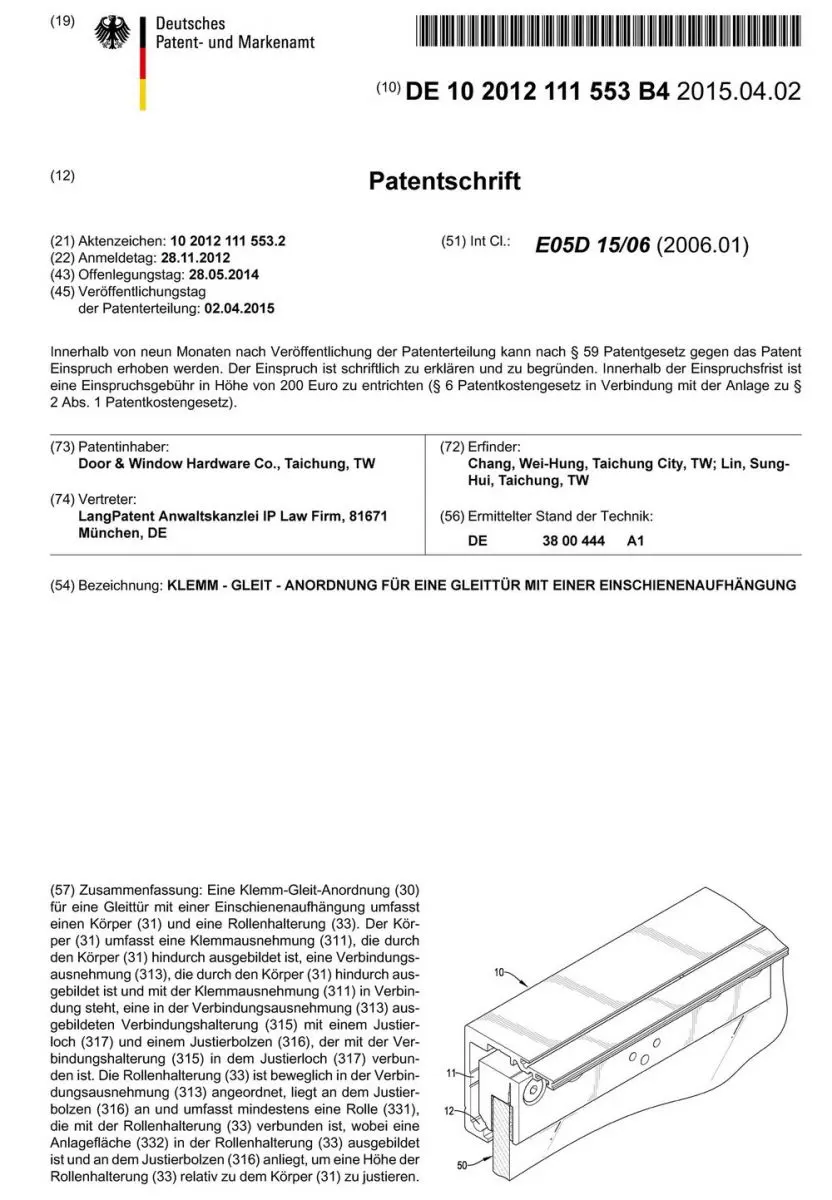

- Patented in many countries
- EN 1527 Approved
- One adjustable screw for +/-1/8" (3.5mm) height adjustment and anti-falling in front
- Silent movement
- Long durability: Durable sliding roller over 100 kilometers (200,000 Cycles) in-house tested and EN1527 approved
- Easy installation for one man job
- Elegant and compact design (track size 54X58mm) with all hardware hidden inside the track
-
Loading capacity :
Light duty : 40~ 65kgs (88~143lbs)
Standard duty : 65~100kgs (143~220lbs)
Heavy duty : 100~150kgs (220~330lbs)

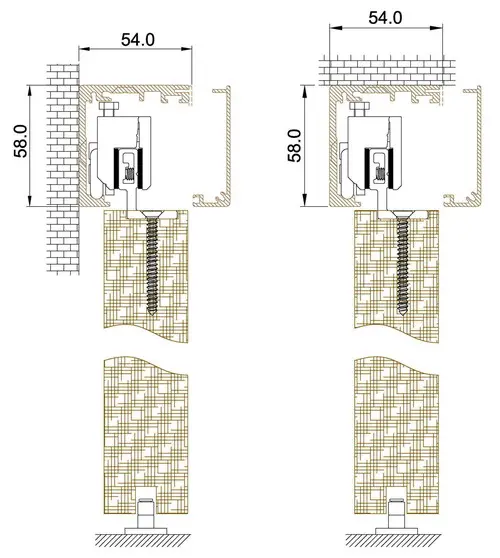

Dimensions : (unit : mm)

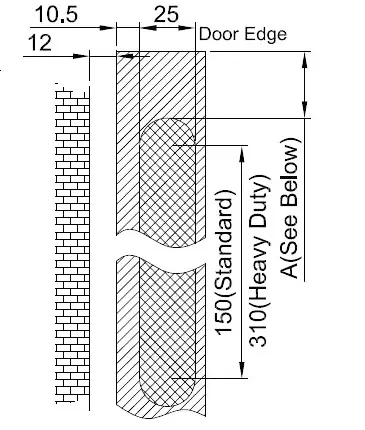

Cut out (unit : mm)

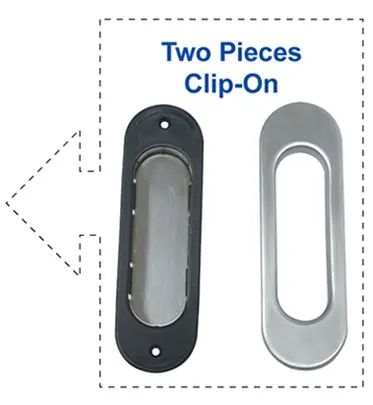

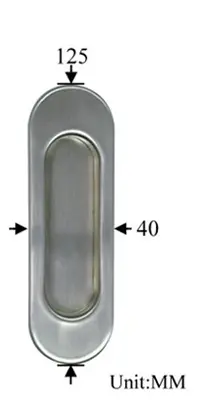

Optional: Dummy s.s. pull PH-1329 (Finish in brushed stainless steel, other finishes upon request)
