Center Glass Locks
Center glass lock with hookbolt, US cylinder and pull handle
LK-350H
- Suitable for commercial glass door with floor closer, sliding glass door or synchronous glass double sliding doors
- Standard for 3/8" glass thickness, 5/16" & 1/2" need to specify in advance
- Covers in stainless steel or aluminum material
- Used with the US cylinder
- Standard pull handles size: Ø25.4mm (1-inch) x (L) 203.2mm (8-inch)
- Pull handles materials: stainless steel or aluminum

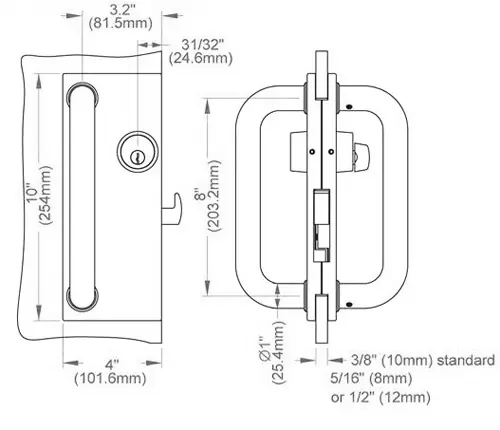

Dimensions : (unit : mm)

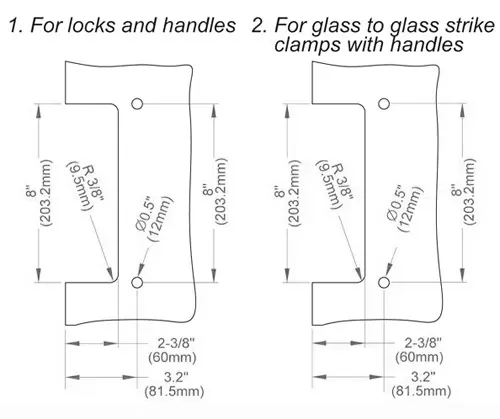

Cut out : (unit : mm)
