Hydraulic Hinges
Dummy hinges
SH-829A Dummy function
- Glass to wall mounted
- Pivot function only
- Designed for glass thickness 8~12mm (5/16"~1/2")
- Elegant alternative to floor closer, easier and low cost installation (no need to break the floor), and low maintenance costs
- Work with hydraulic hinge as a pair, maximum interior door weight 50kgs (110lbs) per pair.
- Maximum interior door width: 900mm (36") per pair
- Aluminum cover in brushed aluminum anodized or stainless steel cover to conceal screw holes
Dimensions : (unit : mm)

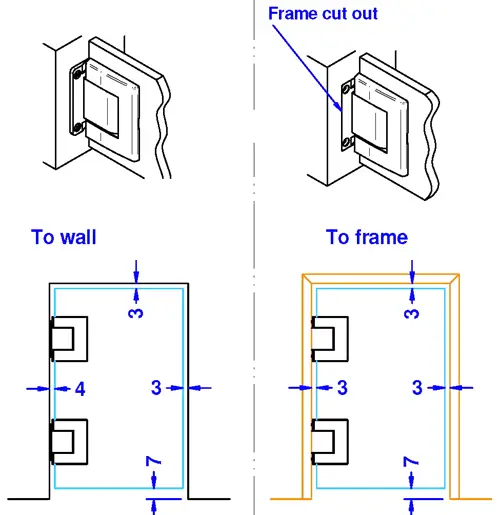

Cut out : (unit : mm)
To Wall To Frame
