Glass Door Closer Clamp & Door Holder Clamp

Frameless glass door closer clamp

GDC-73

  • All parts in stainless steel
  • Need glass cut out
  • Easy installation
  • Suitable for 10 to 12mm glass thickness
  • Used with 50 series surface mounted door closer fixed power size 2/3/4 (equivalent to Dorma BTS-73).
  • Door closer size 207mm (L) x 38.5mm (W) x 60mm (H)

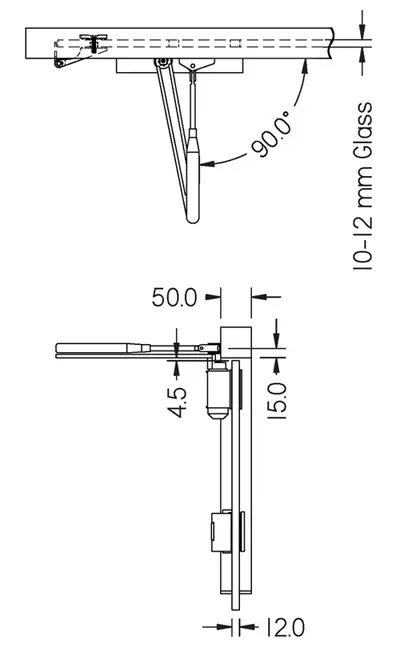

Dimension for inswing door : (unit : mm)

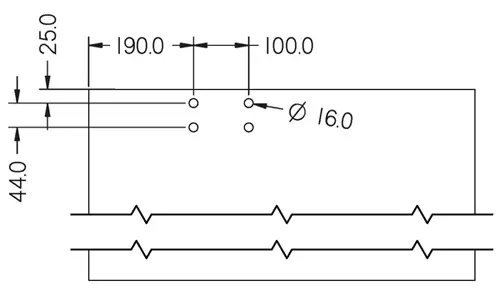

Cut out for inswing door: (unit : mm)

Dimension for outswing door : (unit : mm)

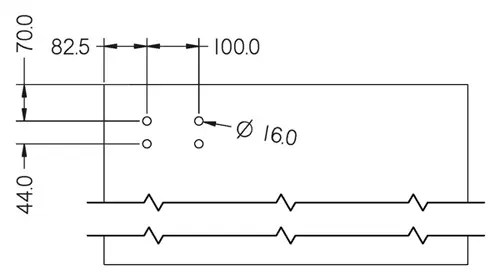

Cut out for outswing door: (unit : mm)
