LK-530-DT Series-Glass Door Lock USA Cylinder
Glass door lock with USA cylinder
LK-530R-DT
- Patented in many countries

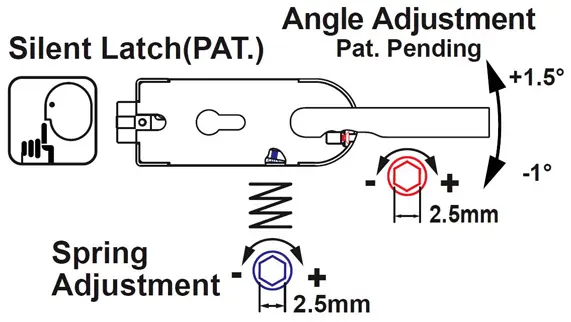

- Low noise- silent latch
- Elegant look - handle angle adjustment

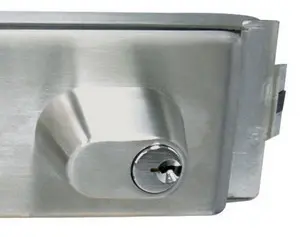

- Interior with thumb-turn and exterior with the US cylinder and security rose cover (unlocked by key from outside, or the thumb-turn inside), please specify for inswing or outswing door use.
- The latch is reversible for left and right.
- Handle remains active after locked to protect the locks
- Covers can be made in stainless steel, aluminum and brass material.
- Accessories like hinges, and handle are also available.
- For strike plate and strike box, pls. refer to product group "LK-500 Series".

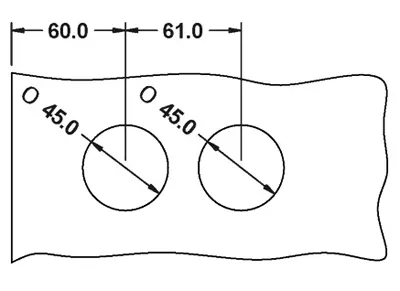

Cut out : (unit : mm)
