Heavy Duty Pneumatic Spring Door Hinges
Heavy duty pneumatic spring hinge
SH-722

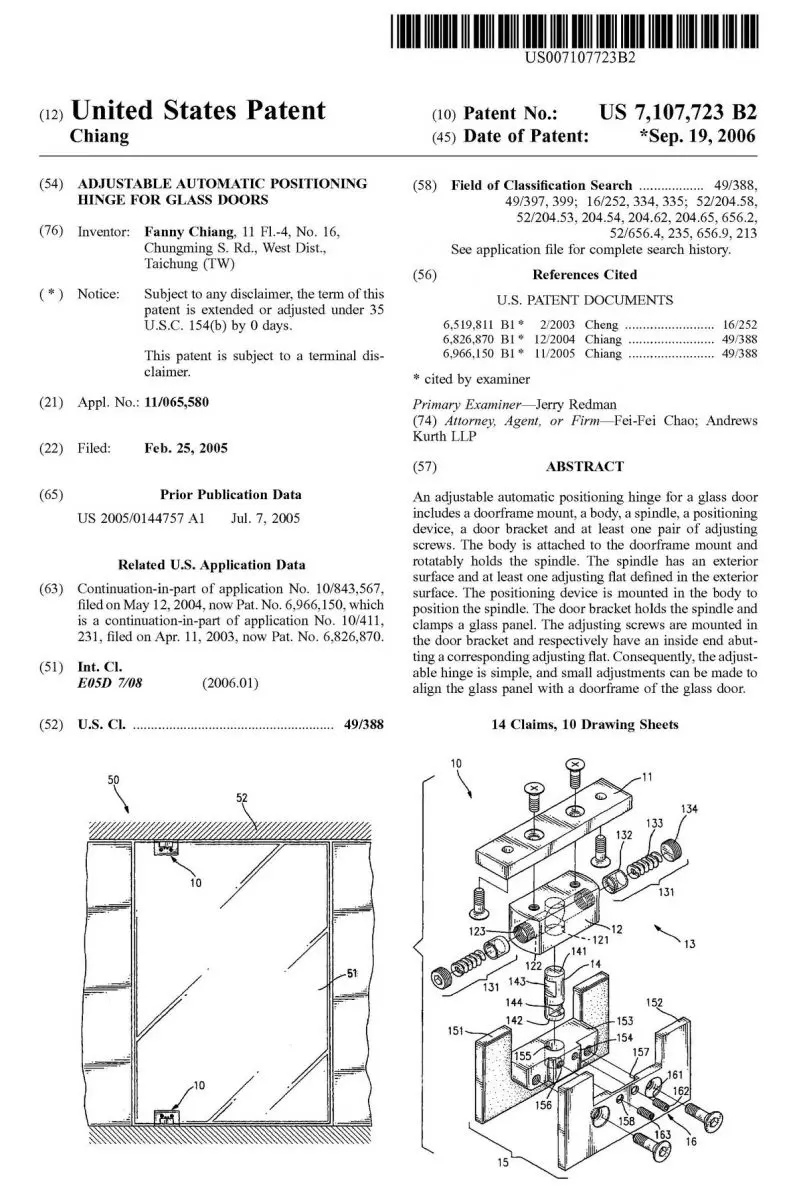

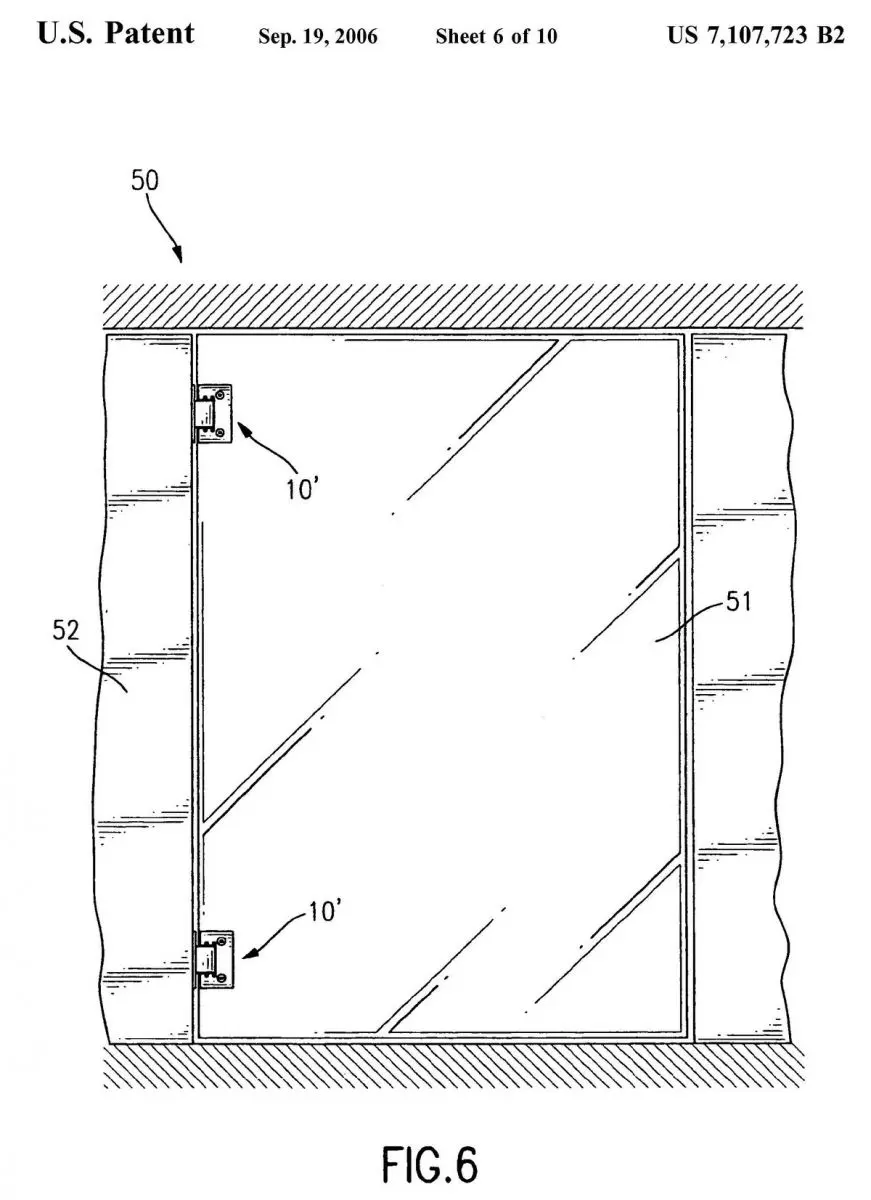

- Patented in many countries
- For door weighting: up to 88 to 132lbs (40 to 60kg) per pair
- For double action door with maximum width 36 inches (915mm)
- Self-closing around 70 degrees (other alternative is optional) and long durability (3 to 5% closing force loss)
- Suitable for offices, rest room or any indoor use
- 180 degree glass to glass mounting
- For glass thickness: 5/16 to 1/2-inch (8 to 12mm)
- Maximum pulling force 2.2lbs (1.0kg), good for handicap.
- With consistent closing force and speed and precisely centering on 0 degrees closing position even after long-term cycling
- Angle adjustment to line up with fix panel or to close position after glass door installed if necessary

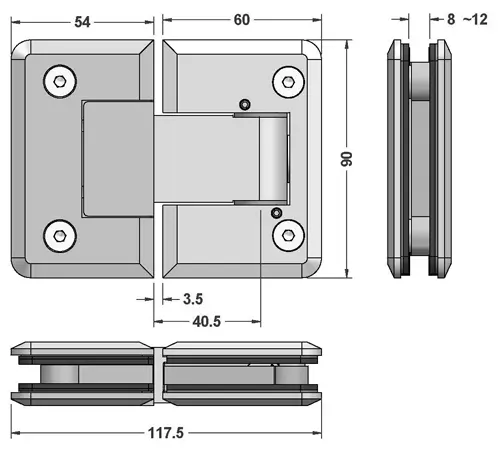

Dimension (unit : mm)

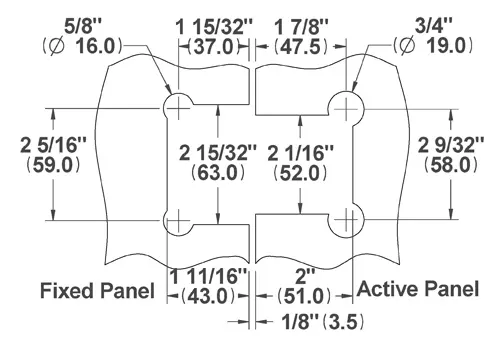

Cut out (unit : mm)
