Hotel mortise lock
ML-256
- Outside knob/lever is always active with dummy spindle which can't retract both latch and dead bolt and inside lever can always retract both latch and deal bolt in the same time
- Brass latch is reversible left or right on job side
-
Optional for square and round faceplate, faceplate width 18, 20 and 24mm
Unlocked : Dead bolt retracted by key from outside, or handle inside or key/thumb-turn inside
Locked : Deal bolt projected (locked) by key outside or key/thumb-turn inside

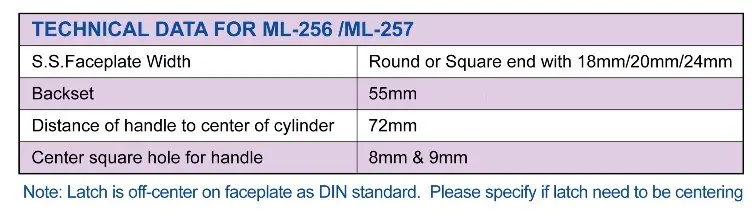

Dimensions : (unit : mm)
