Suspending Glass Sliding Door System(Save Space)
Soft closing suspending glass sliding door system
Milan series
- Patented in many countries
- Durable sliding roller 100,000 Cycles tested and EN1527 approved
- Patented glass height & holes position adjustment up or down in 4mm (0.157")
- All parts in stainless steel #304
- Loading weight 80kgs (176lbs) /2 carriages.
- Glass door can be closed with hydraulic soft closing and soft bumping mechanism
- Suitable for 8~10mm (5/16"~3/8") glass thickness, for 12mm (1/2") glass door, please specify in advance

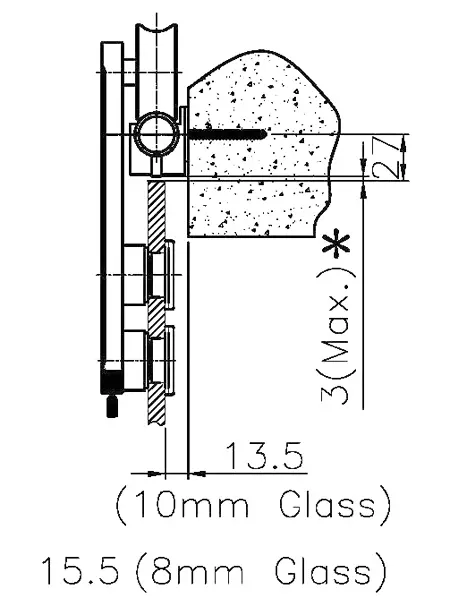

Dimension (unit : mm)

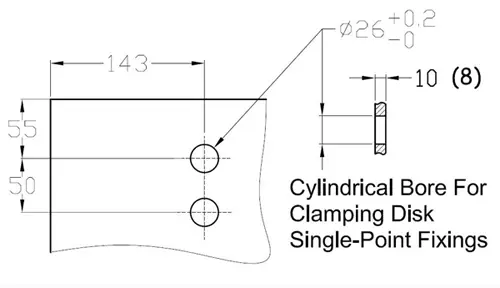

Cut out for carriage (unit : mm)

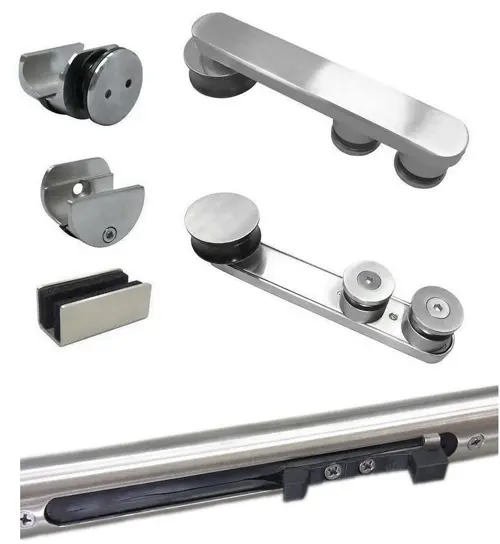

Accessories
