Shower Hinges
Adjustable shower hinge
SH-321AD-A

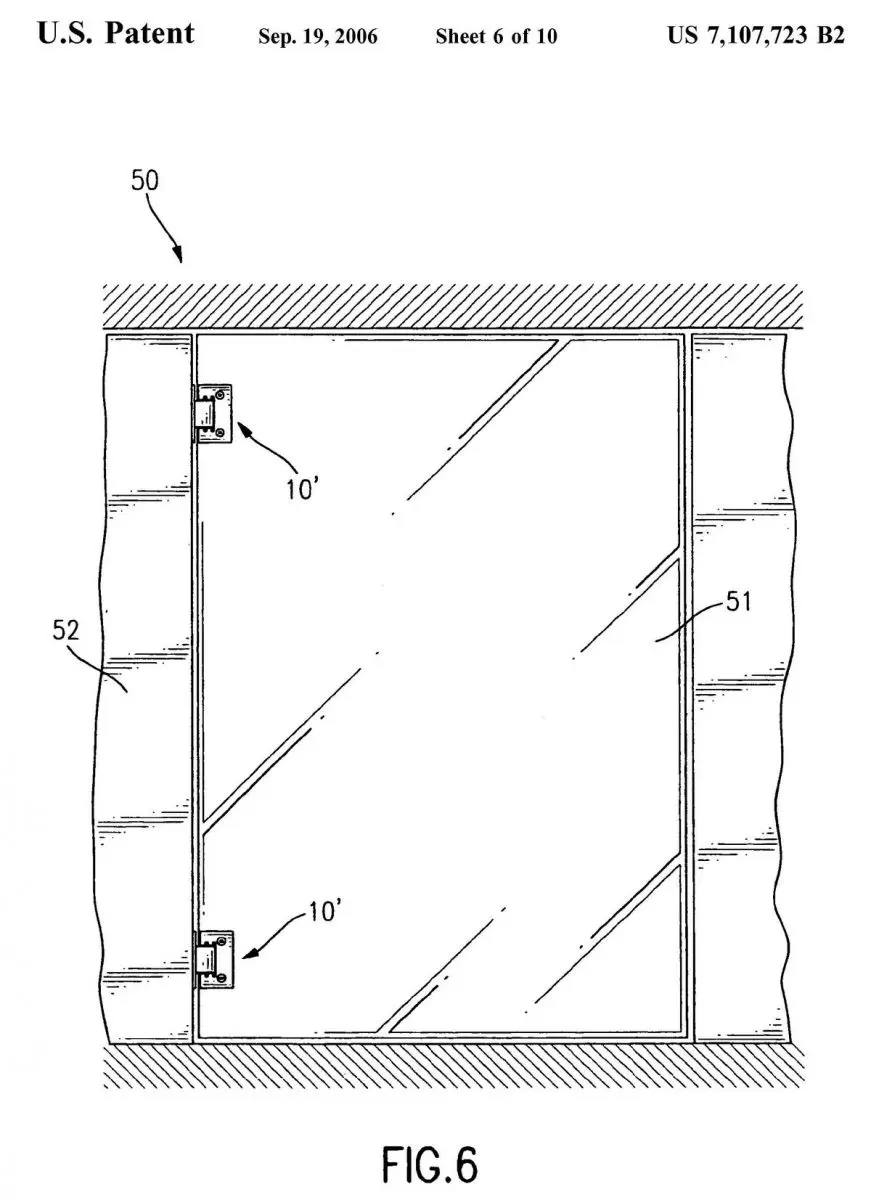

- Patented in USA
- Radius design hinge wall mounting with full back plate
- For glass thickness 8-12mm (5/16"~1/2")
- With rabbit ear glass cut-out
- Self-closing around 25°
- Hold precisely on close position
- Simply loosen one side of the allen screw to adjust the door to desired angle and closed position, to have the door close completely against the jamb adjustable degree ± 15°
- Loading capacity: 2 hinges for maximum door weight 50kgs (110lbs) at maximum door width 815mm (32"), and 3 hinges for maximum door weight 65kgs (140lbs) at maximum door width 915mm (36") for tempered and non-laminate glass
4 different back plate available:
“A” = Full back plate (as shown on the left)
“B” = Short back plate
“C” = Single back plate (offset)
“D” = Full back plate with center cut out (H shape)

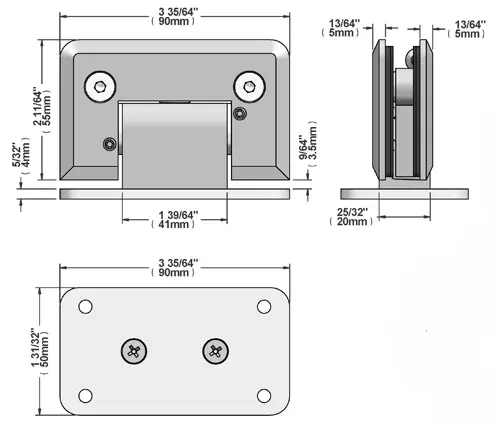

Dimension (unit : mm)

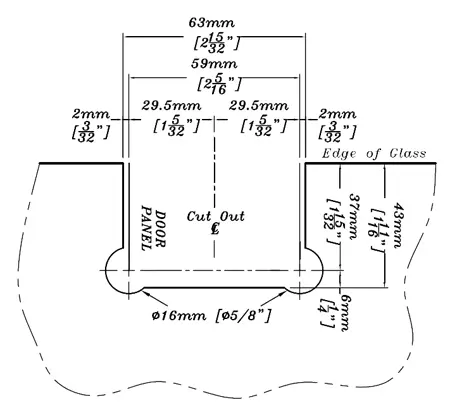

Cut out (unit : mm)
