PRODUCTS
Shower Hinges
Adjustable shower hinge
SH-322AD

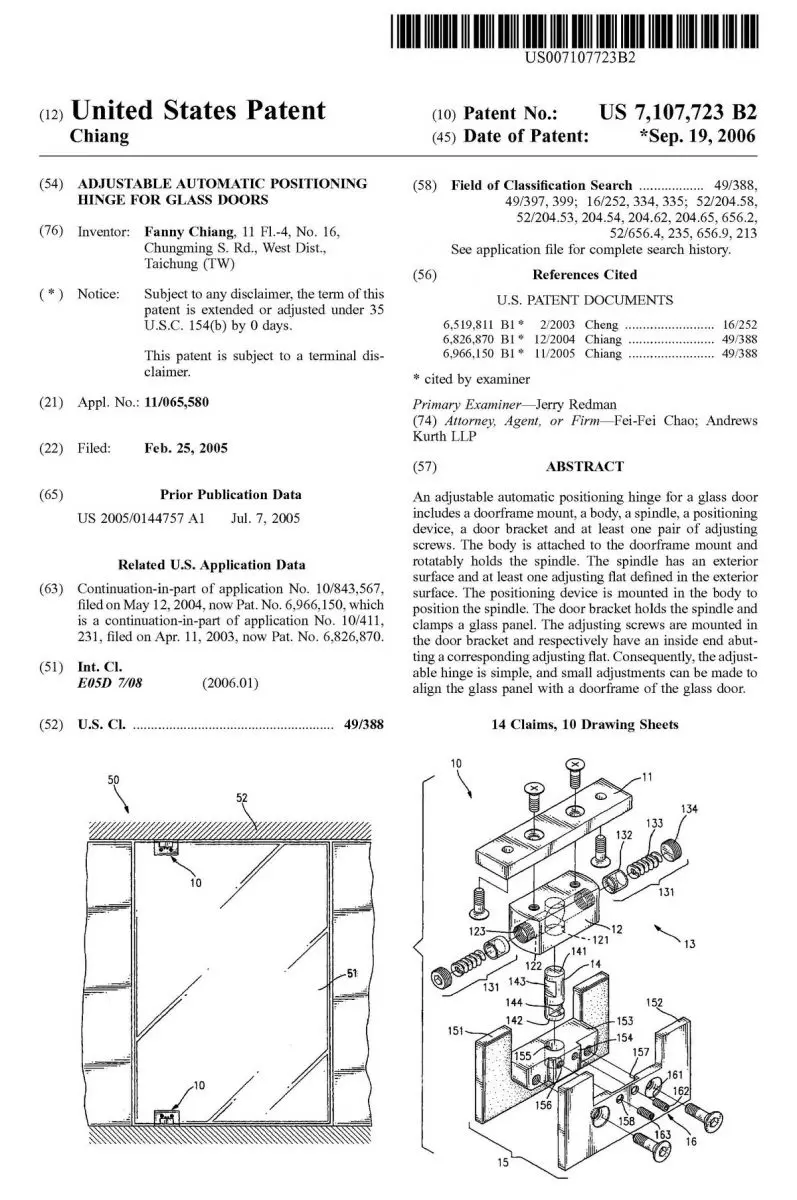

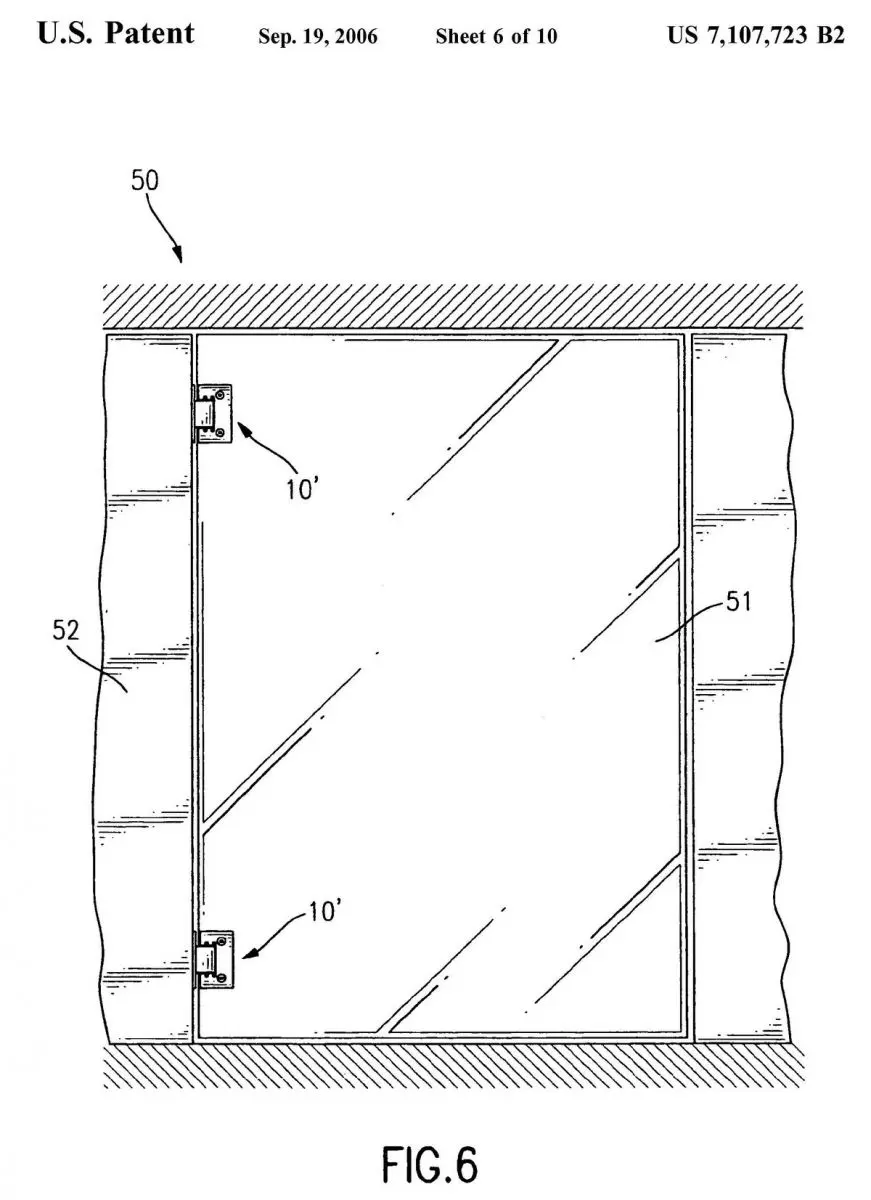

- Patented in USA
- Radius design hinge 180° glass to glass mounting
- For glass thickness 8-12mm (5/16"~1/2")
- With rabbit ear glass cut-out
- Self-closing around 25°
- Hold precisely on close position
- Simply loosen one side of the allen screw to adjust the door to desired angle and closed position, to have the door close completely against the jamb adjustable degree ± 15°
- Loading capacity: 2 hinges for maximum door weight 50kgs (110lbs) at maximum door width 815mm (32"), and 3 hinges for maximum door weight 65kgs (140lbs) at maximum door width 915mm (36") for tempered and non-laminate glass

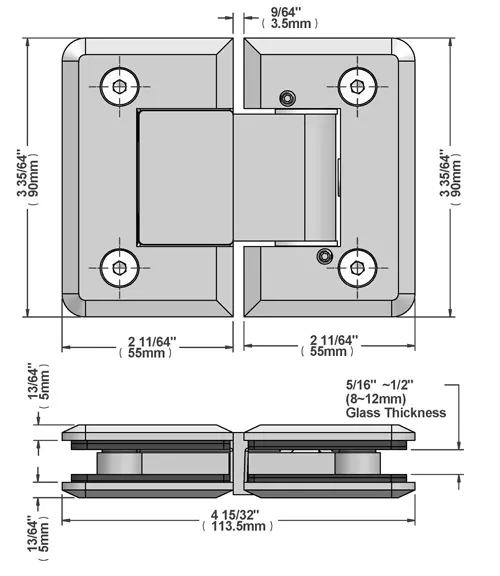

Dimension (unit : mm)
Cut out (unit : mm)
