Aluminum Glass Sliding Door System(Save Space)
Eco Soft Closing Aluminum Glass Sliding Door System
Verona series
- Permanent anti-falling , No adjustment required.
- Silent movement
- Easy installation for one man job
- Elegant and compact design (track size 54X58mm) with all hardware hidden inside the track
- Standard for 5/16" & 3/8" (8 & 10mm) glass, 12mm (1/2") need to specify in advance
- Long durability: Durable sliding roller over 100 kilometers (200,000 Cycles) in-house tested
- Loading capacity : maximum door weight 40~65kgs (88~143lbs) / 2 carriages
- Hydraulic soft closing stopper provides cushioning against door slamming with below advantages :
- Using hydraulic cylinder with one year warranty
- Consistent closing speed
- Long durability for heavy door bumping
- Adjustable soft closing pulling force for different door weight

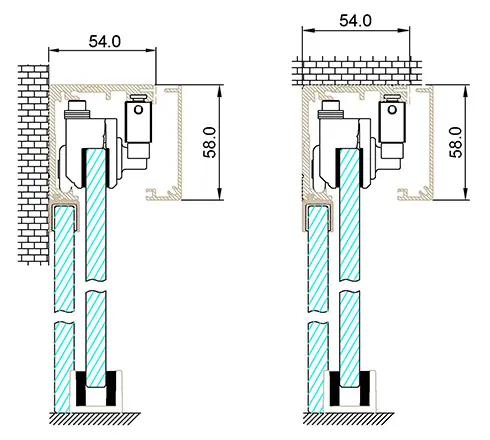

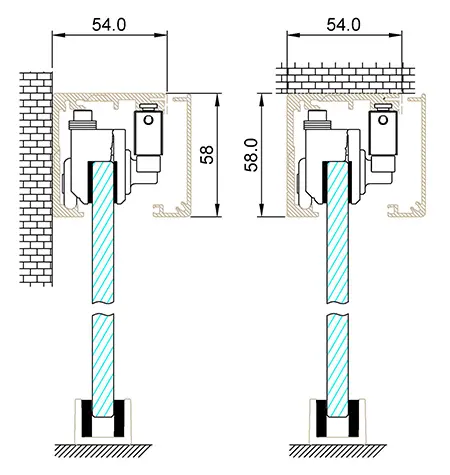

Dimensions : (unit : mm)
Side panel (optional accessory)
