Aluminum Glass Sliding Door System(Save Space)
Soft Closing Aluminum Glass Sliding Door System
Valencia series

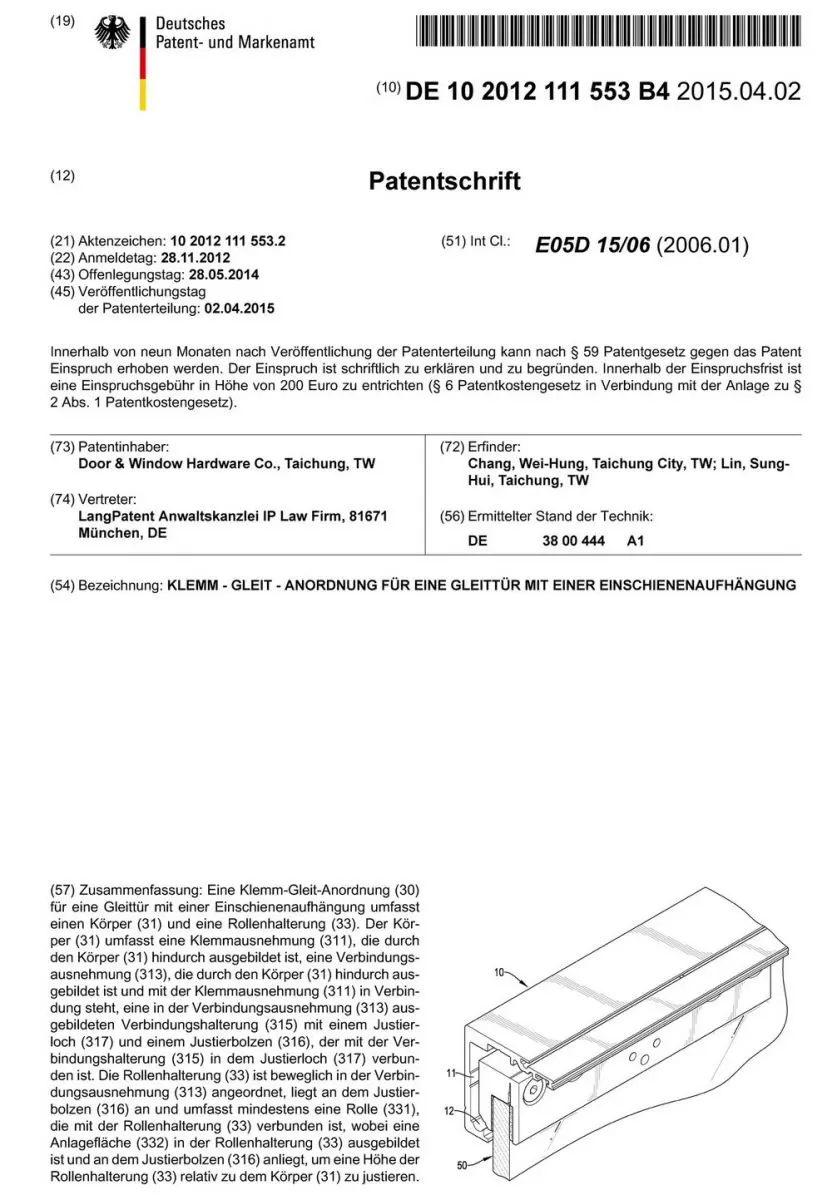

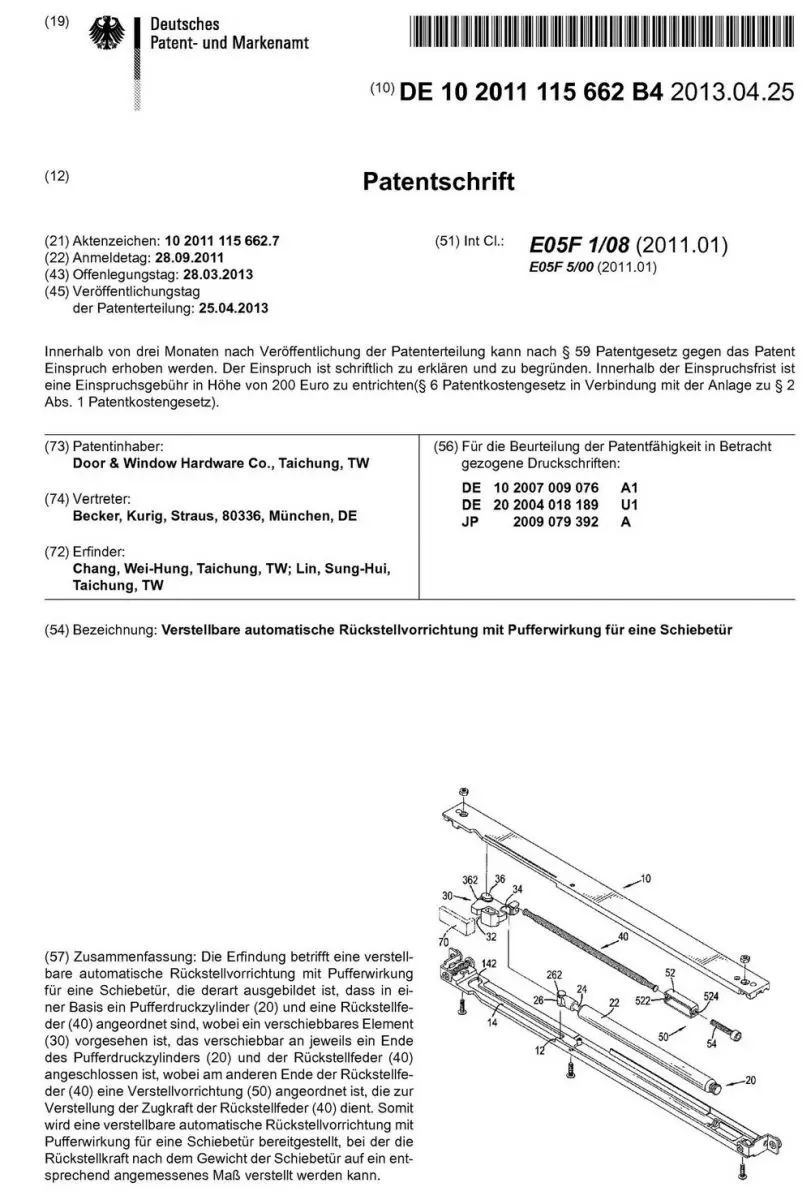

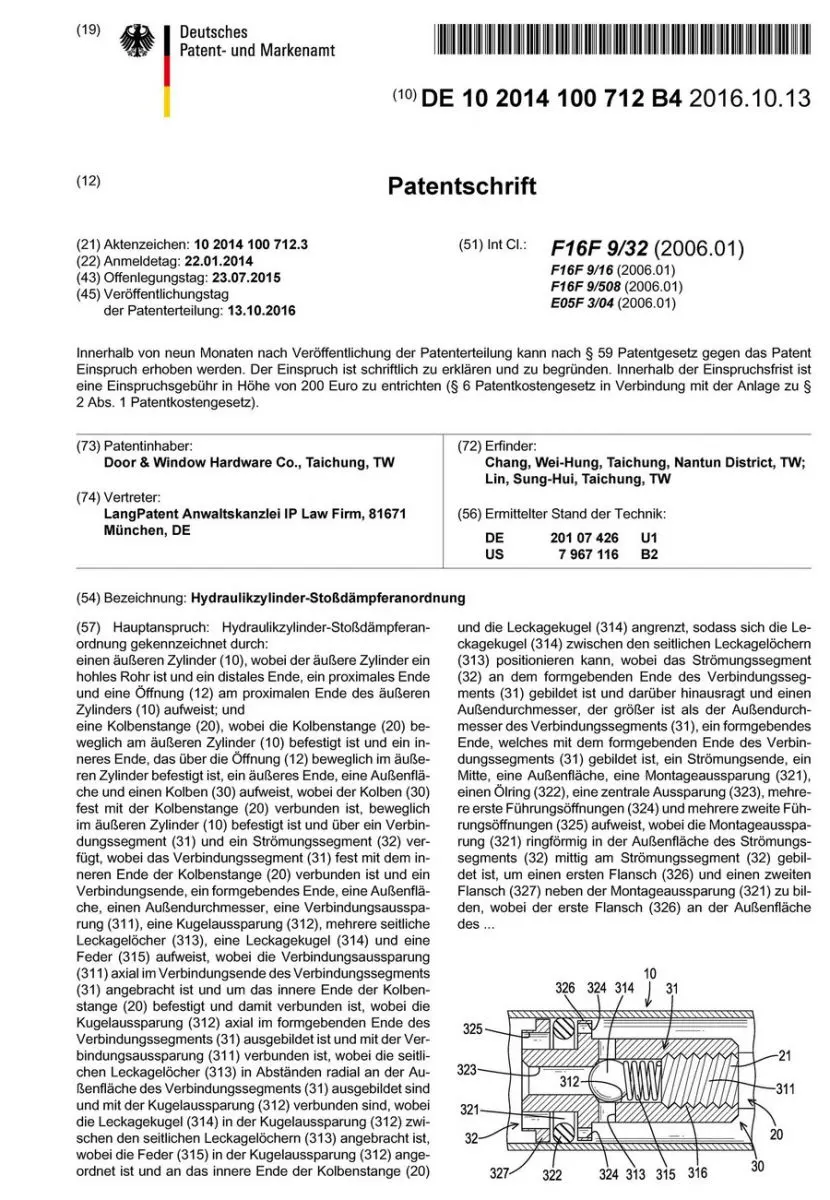

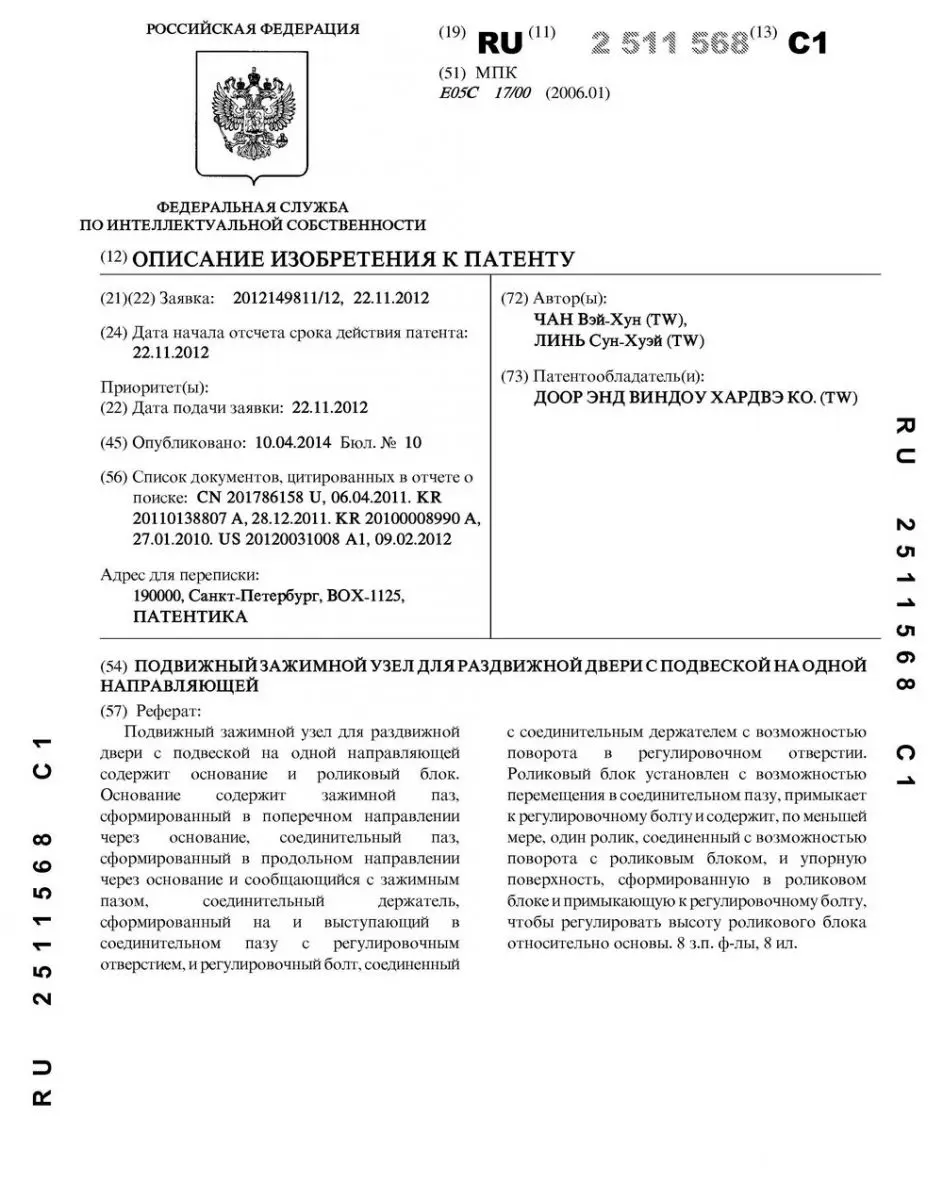

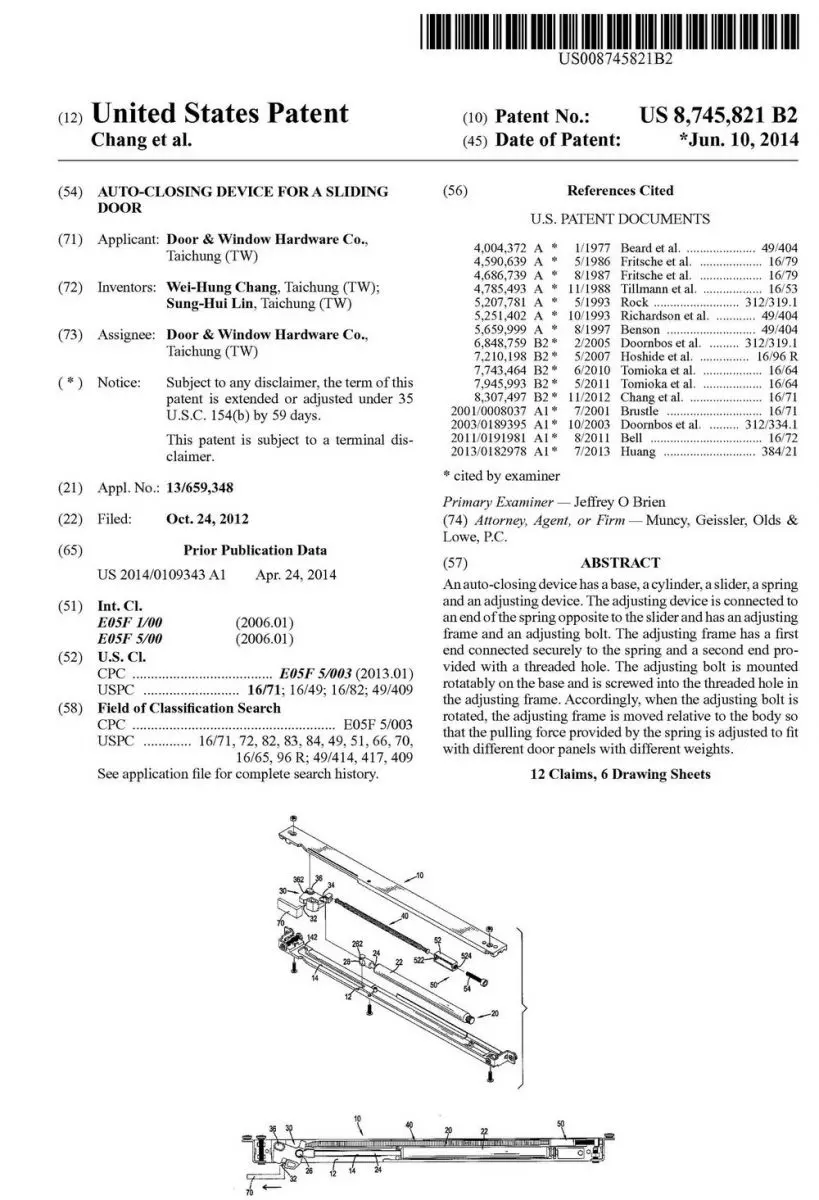

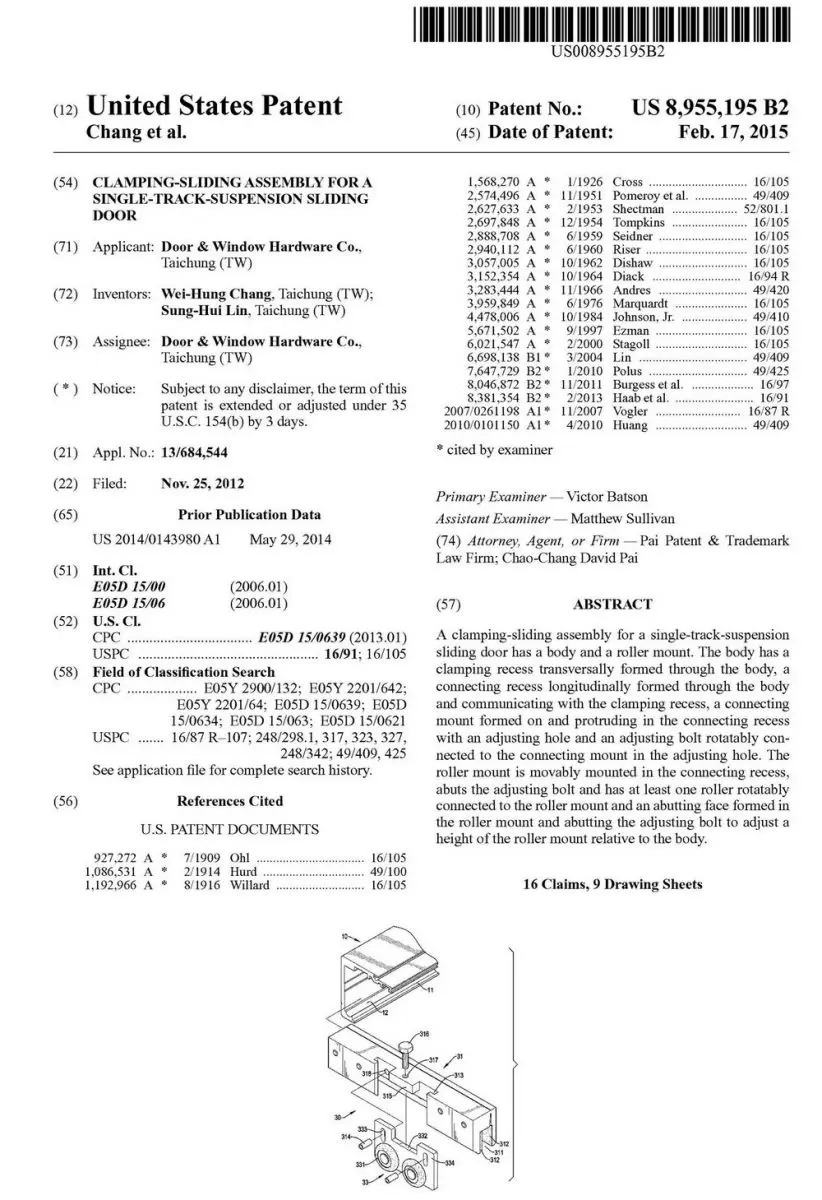

- Patented in many countries
- EN 1527 Approved
- Permanent anti-falling , No adjustment required.
- +/-1/8" (3.5mm) height adjustment
- Silent movement and long durability
- Easy installation for one man job
- Elegant and compact design (track size 54X58mm) with all hardware hidden inside the track
- Standard for 5/16" & 3/8" (8 & 10mm) glass, 12mm (1/2") need to specify in advance
- Long durability: Durable sliding roller over 100 kilometers (200,000 Cycles) in-house tested and EN1527 approved
-
Loading capacity :
- Light duty : 40~ 65kgs (88~143lbs)
- Standard duty : 65~100kgs (143~220lbs)
- Heavy duty : 100~150kgs (220~330lbs) - Hydraulic soft closing stopper provides cushioning against door slamming with below advantages :
- Using hydraulic cylinder with one year warranty
- Consistent closing speed
- Long durability for heavy door bumping, in house tested 200,000 cycles
- Adjustable soft closing pulling force for different door weight

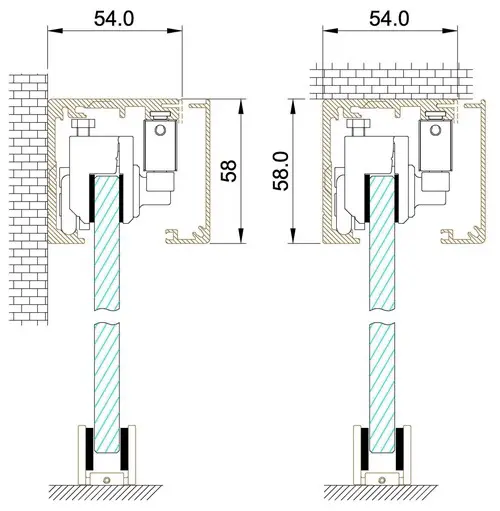

Dimensions : (unit : mm)

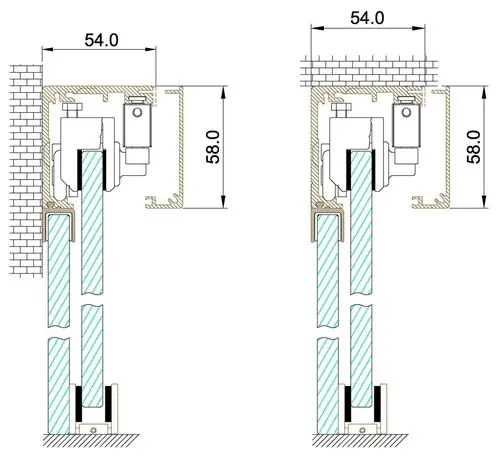

With side panel (optional accessory)
