Indoor Glass Eco. Door Closers
Glass door pneumatic bottom closer with narrow base plate
FL-860BP60 Pneumatic bottom closer, narrow base

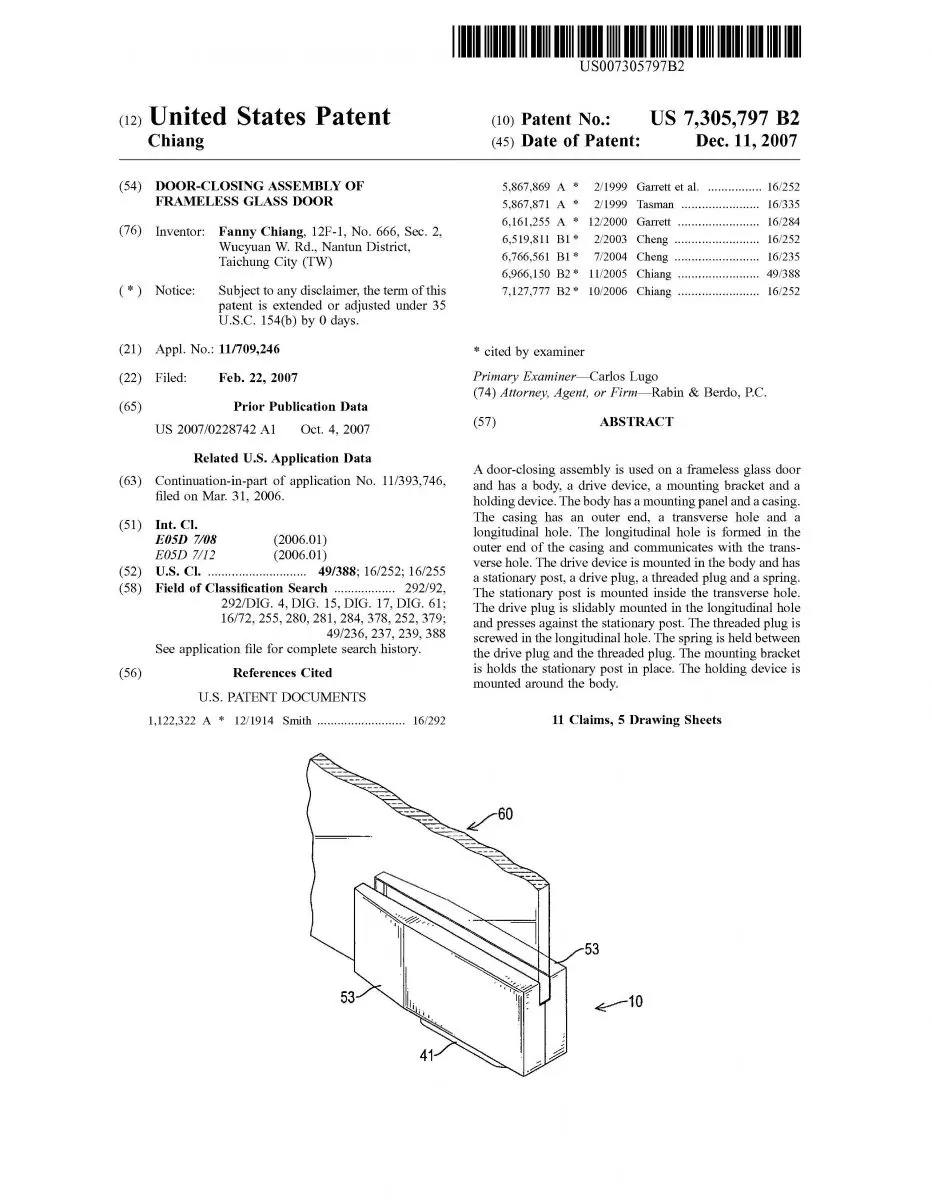

- Patented in many countries
- In-house tested for long-term durability
- For indoor use, glass door thickness 10~12mm (3/8"~1/2"), for 8mm (5/16") glass doors use, please specify upon ordering. Max. door width 915mm (36") , max door weight 60kgs (132lbs) /set
- Adjustable closing force
- For double action indoor in 180° opening each side with 90° hold open
- Easy concealed installation (better aesthetics and no need for cement hole on the ground)
- Two functions in one product, no need to use door hinge
- No worry for oil leakage problem

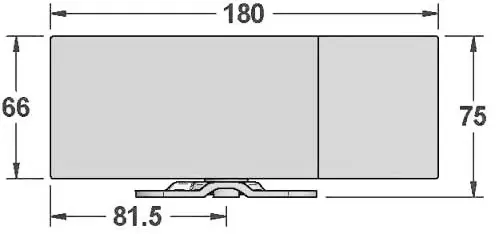

Dimensions : (unit : mm)
Application Example: (Bottom door closer FL860BP60 +top FL860C = one set)

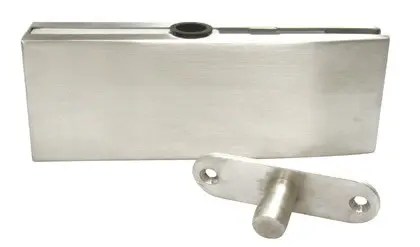

Top pivot FL-860C

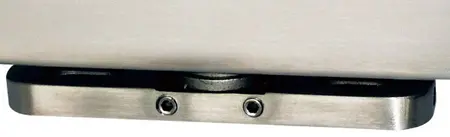

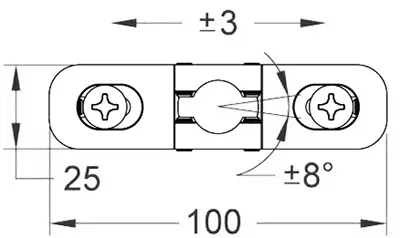

Adjustable base plate is also available
