Indoor Glass Eco. Door Closers
Square design glass door spring bottom closer with narrow base plate

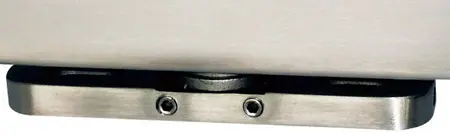

FL-860SB square spring bottom closer, narrow base

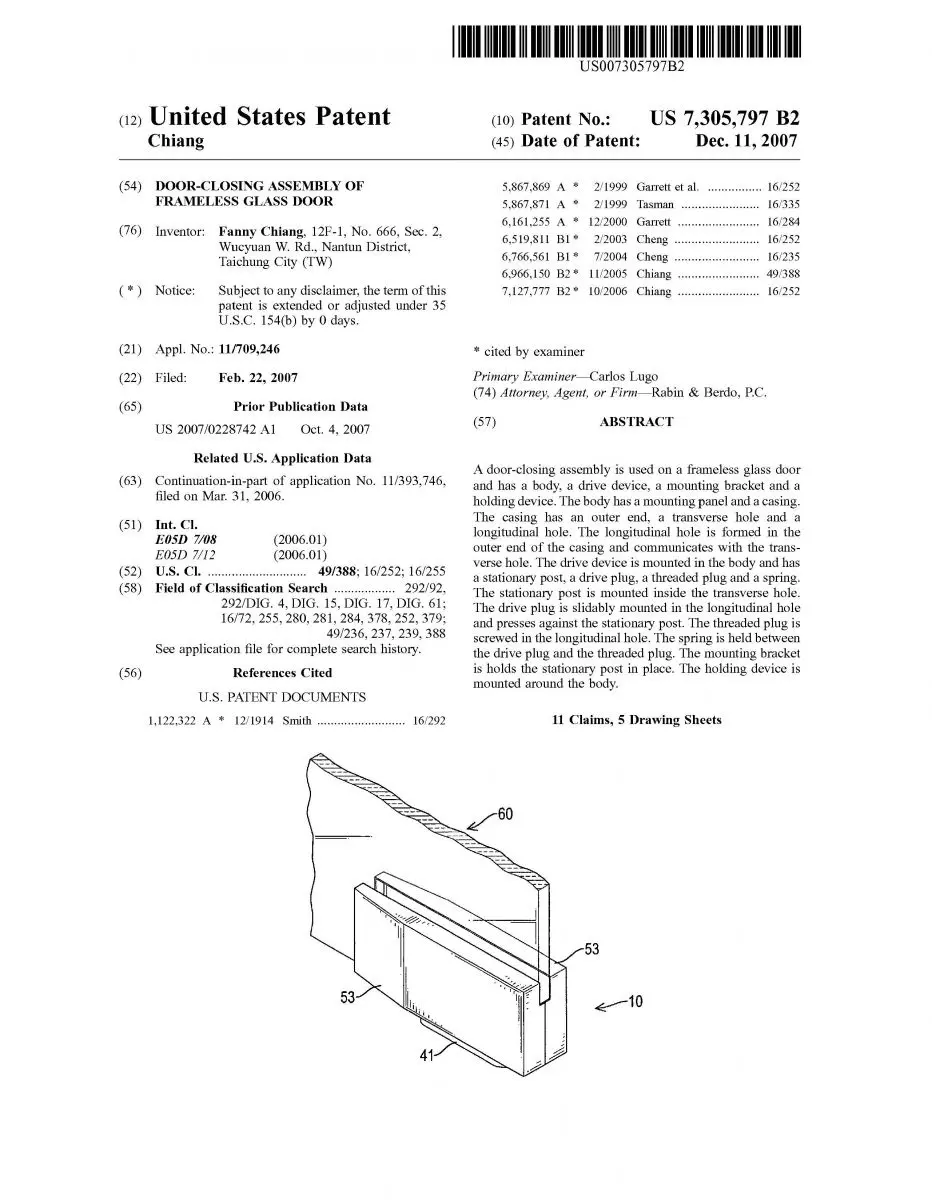

- Patented in many countries
- In-house tested 100,000 cycles
- For indoor use, glass door thickness 10~12mm (3/8"~1/2"), for 8mm (5/16") glass doors use, please specify upon ordering. Max. door width 915mm (36"), max. door weight 60kgs(132lbs)/set
- Adjustable closing force
- For double action indoor in 180° opening each side with 90° hold open
- Easy concealed installation (better aesthetics and no need for cement hole on the ground)
- Two functions in one product, no need to use door hinge
- No worry for oil leakage problem

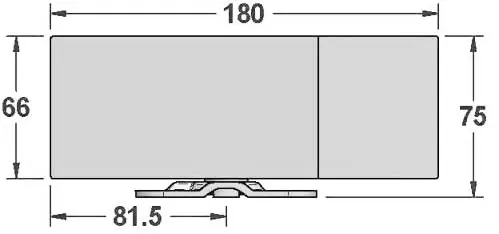

Dimensions : (unit : mm)

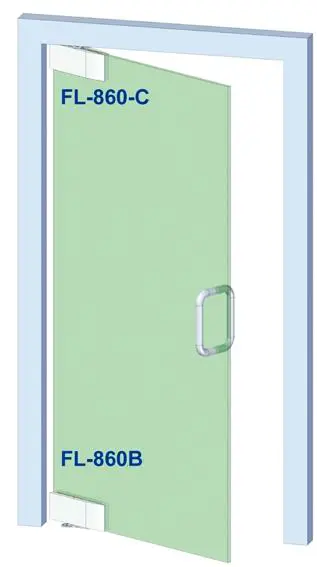

Application Example: (Bottom door closer FL860SB + top FL860SC = one set )

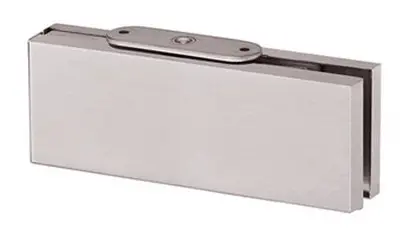

Top pivot FL-860SC

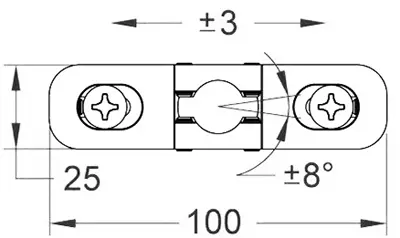

Adjustable base plate is also available
