Indoor Glass Eco. Door Closers
Square design glass door pneumatic bottom closer with narrow base plate
FL-860SBP80 square pneumatic bottom closer, narrow base

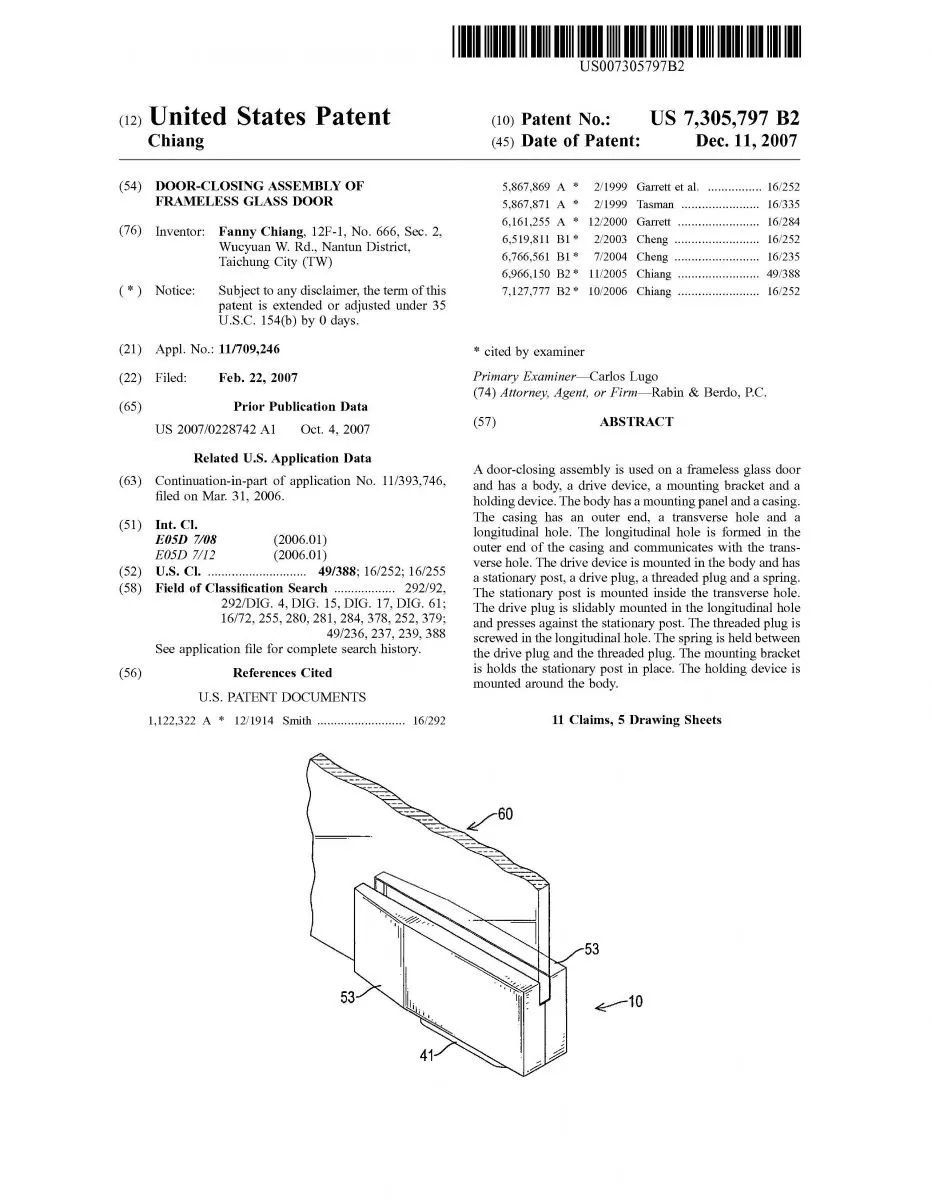

- Patented in many countries
- In-house tested for long-term durability
- For indoor use, glass door thickness 10~12mm (3/8"~1/2"), for 8mm (5/16") glass doors use, please specify upon ordering. Max. door width 1000mm (40") , max door weight 80kgs (176lbs) /set
- Adjustable closing force (when used together with FL860SB-HB hydraulic buffer)
- For double action indoor in 180° opening each side with 90° hold open
- Easy concealed installation (better aesthetics and no need for cement hole on the ground)
- Two functions in one product, no need to use door hinge
- No worry for oil leakage problem

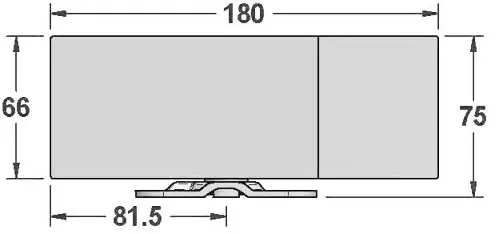

Dimensions : (unit : mm)
Application Example:

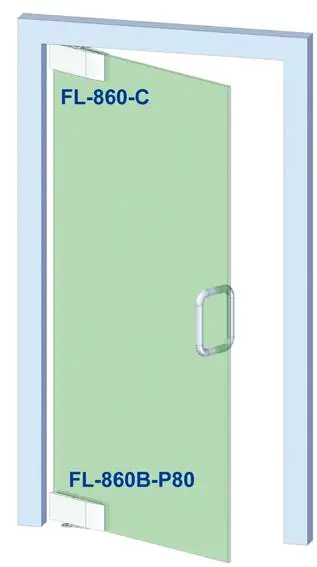

A) Closing speed non-adjustable : Bottom door closer FL860SBP80+top FL860SC = one set)

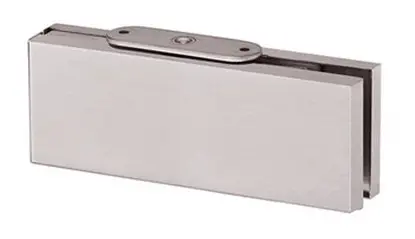

Top pivot FL-860SC

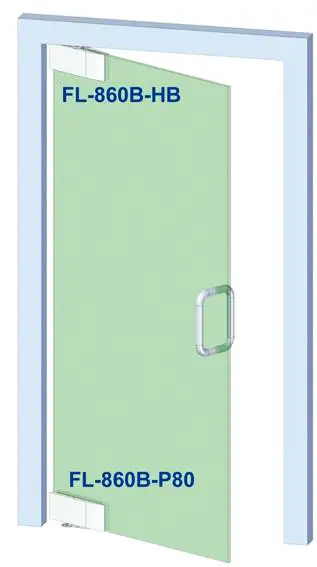

B) Closing speed adjustable : Bottom door closer FL860SBP80+ top FL860SB-HB = one set)

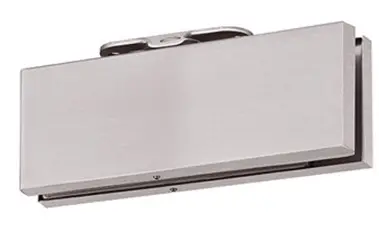

Top pivot FL-860SB-HB

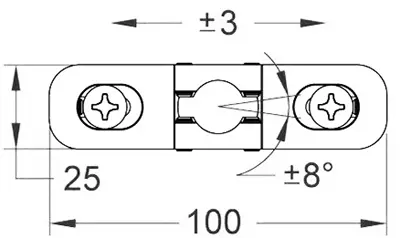

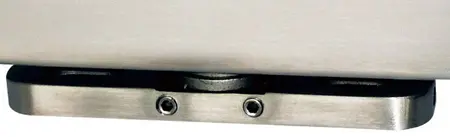

Adjustable base plate is also available
Application Example:
A) Closing speed non-adjustable : Bottom door closer FL860SBP80+top FL860SC = one set)
Top pivot FL-860SC
