Indoor Glass Eco. Door Closers
Glass door spring bottom closer with narrow base plate

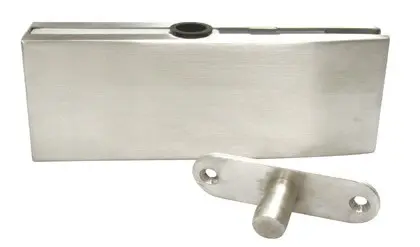

FL-860B Spring bottom closer, narrow base

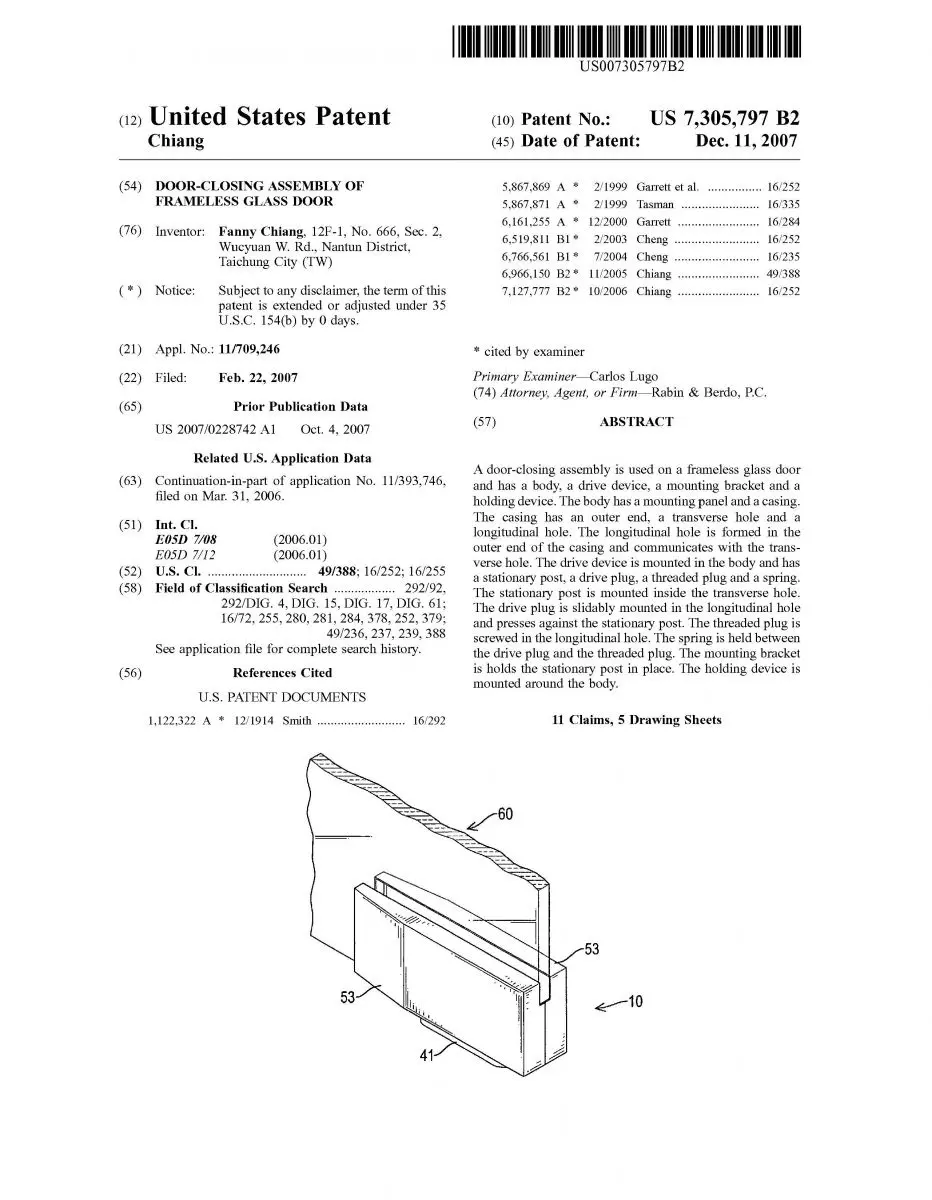

- Patented in many countries
- In-house tested 100,000 cycles
- For indoor use, glass door thickness 10~12mm (3/8"~1/2"), for 8mm (5/16") glass doors use, please specify upon ordering. Max. door width 915mm (36"), max. door weight 60kgs(132lbs)/set
- Adjustable closing force
- For double action indoor in 180° opening each side with 90° hold open
- Easy concealed installation (better aesthetics and no need for cement hole on the ground)
- Two functions in one product, no need to use door hinge
- No worry for oil leakage problem

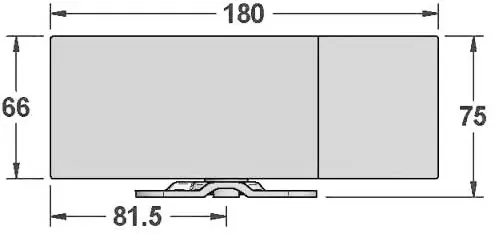

Dimensions : (unit : mm)
Application Example: (Bottom door closer FL860B + top FL860C = one set )
Top pivot FL-860C

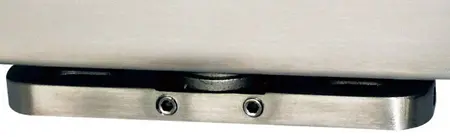

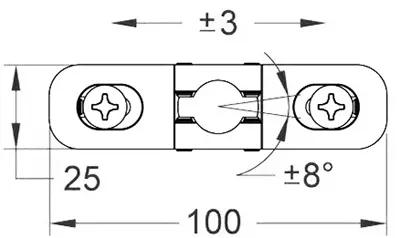

Adjustable base plate is also available
