Indoor Glass Eco. Door Closers
Square design glass door top hydraulic buffer with narrow base plate
FL-860SB-HB square top hydraulic buffer

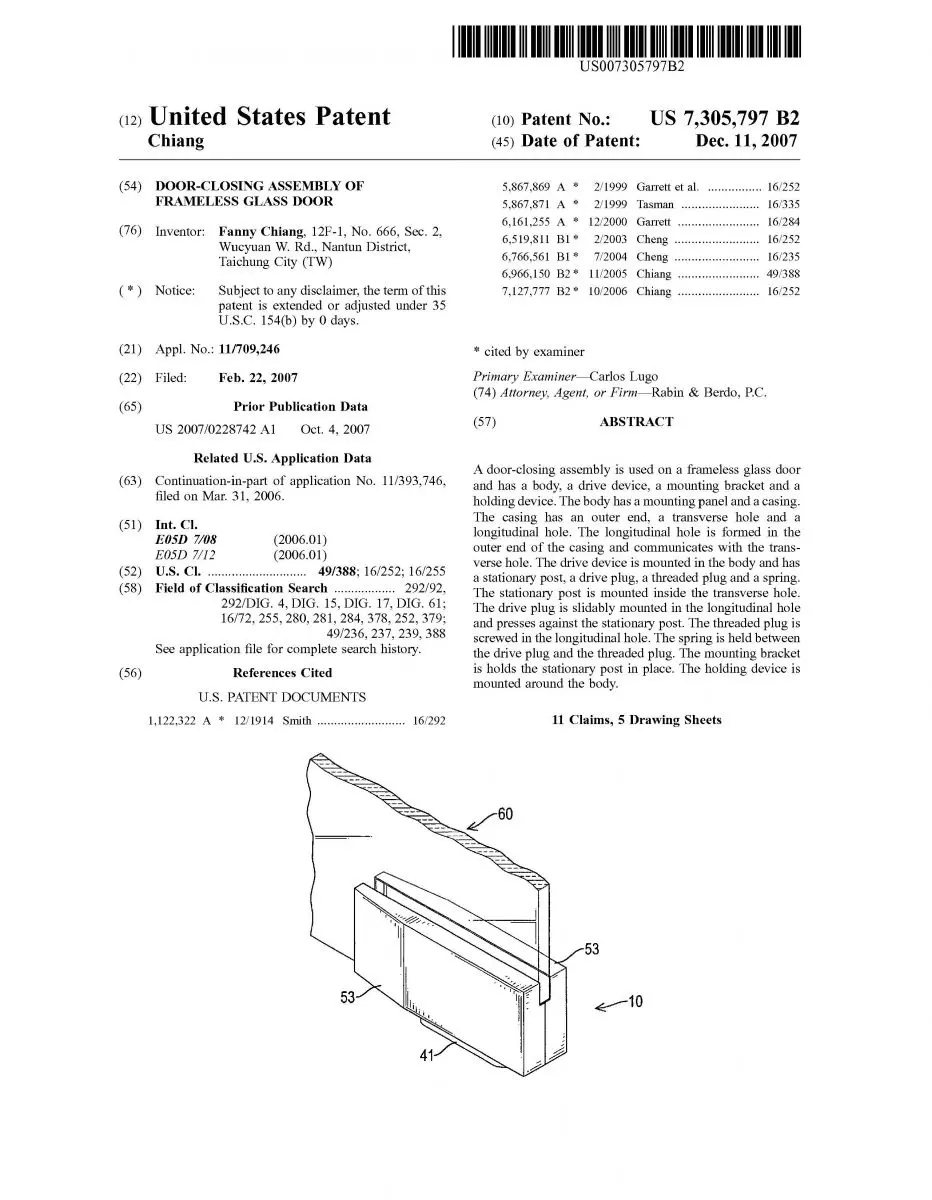

- Patented in many countries
- In-house tested for long-term durability
- For indoor use, glass door thickness 10~12mm (3/8"~1/2"), for 8mm (5/16") glass doors use, please specify upon ordering. Max. door width 1000mm (40") , max door weight 80kgs (176lbs) /set
- Adjustable closing speed 4-15 seconds - using with pneumatic (P80) bottom closer
- For double action indoor in 180° opening each side with 90° hold open
- Easy concealed installation (better aesthetics and no need for cement hole on the ground)
- Two functions in one product, no need to use door hinge
- No worry for oil leakage problem

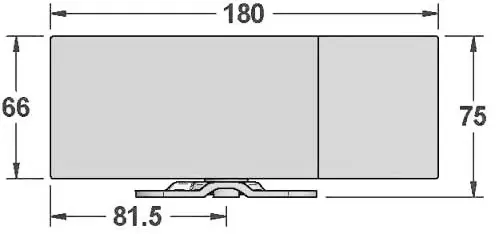

Dimensions : (unit : mm)
Application Example: (Pneumatic bottom closer FL-860BP80 + top hydraulic buffer FL-860B-HB = one set )
