Aluminum Glass Sliding Door System
Geneva series

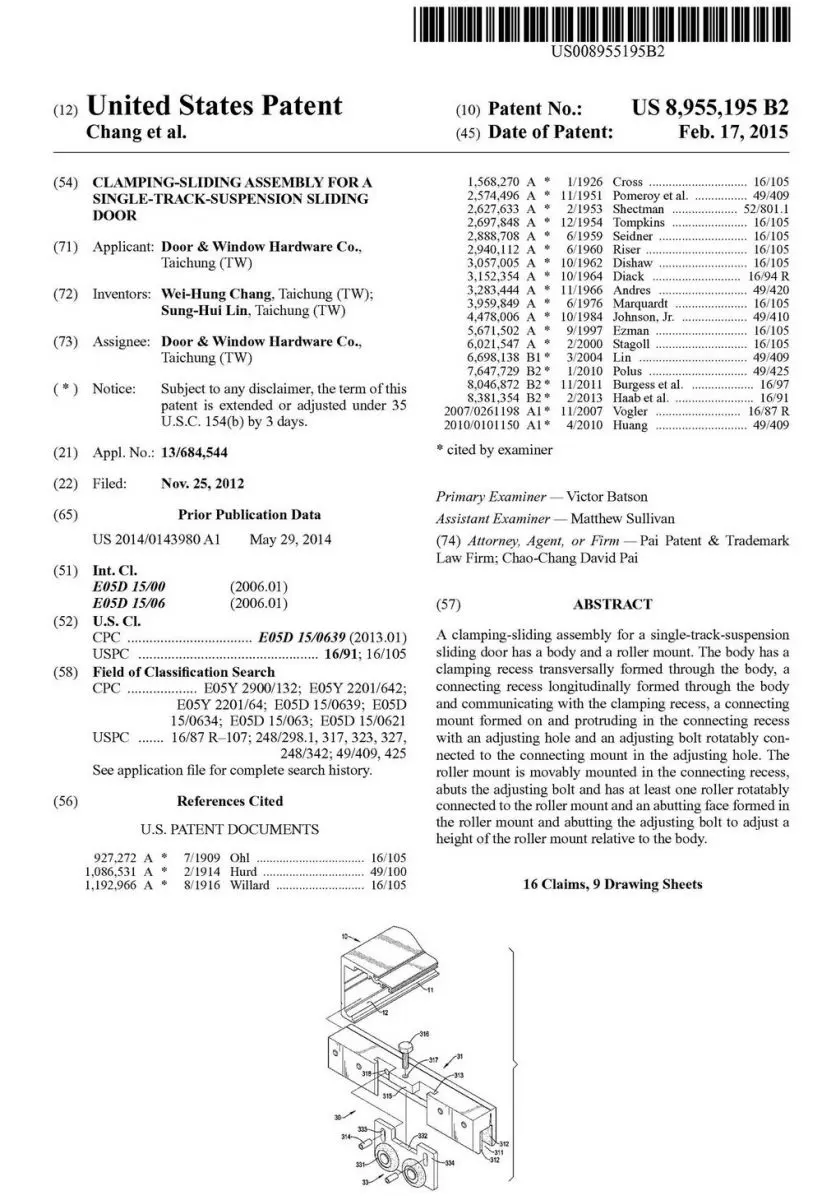

- Patented in many countries
- EN 1527 Approved - 100,000 cycles tested
- Permanent anti-falling , No adjustment required.
- +/-1/8" (3.5mm) height adjustment
- Silent movement
- Long durability
- Easy installation for one man job
- Elegant and compact design (track size 54X58mm) with all hardware hidden inside the track
- Standard for 5/16" & 3/8" (8 & 10mm) glass, 12mm (1/2") need to specify in advance
- Loading capacity :
- Light duty : 40~65kgs (88~143lbs)
- Standard duty : 65~100kgs (143~220lbs)
- Heavy duty : 100~150kgs (220~330lbs)
Dimensions : (unit : mm)
With side panel (optional accessory)
Related product
Soft Closing Aluminum Glass Sliding Door System
- Patented in many countries
- EN 1527 Approved - 100,000 cycles tested
- Permanent anti-falling , No adjustment required.
- +/-1/8" (3.5mm) height adjustment
- Silent movement and long durability
- Easy installation for one man job
- Elegant and compact design (track size 54X58mm) with all hardware hidden inside the track
- Standard for 5/16" & 3/8" (8 & 10mm) glass, 12mm (1/2") need to specify in advance
- Long durability - In-house 200,000 cycles sliding durability tested
- Loading capacity :
- Light duty : 40~65kgs (88~143lbs)
- Standard duty : 65~100kgs (143~220lbs)
- Heavy duty : 100~150kgs (220~330lbs) - Hydraulic soft closing stopper provides cushioning against door slamming with below advantages :
- Using hydraulic cylinder with one year warranty
- Consistent closing speed
- Long durability for heavy door bumping, in house tested 200,000 cycles
- Adjustable soft closing pulling force for different door weight
Side Panel Profile
- Aluminum profile for aluminum sliding system fixed panel
- Brushed stainless steel like or brushed aluminum anodized finish
- Standard length 1,300mm
Aluminum Glass Clamp
- For mounting to glass fixed panel
- Cap type with circle holes
- 2 meter track requires 6pcs of NICE-104
Aluminum Synchronous Glass Sliding Door System
- Aluminum track sliding system for double synchronous glass doors
- With 4 extra parts and cable added.
- Can be used with rubber stopper or soft closing stopper.
- Quick and easy to install
- Synchronously open and close two doors
Eco Soft Closing Aluminum Glass Sliding Door System
- Permanent anti-falling , No adjustment required.
- Silent movement
- Easy installation for one man job
- Elegant and compact design (track size 54X58mm) with all hardware hidden inside the track
- Standard for 5/16" & 3/8" (8 & 10mm) glass, 12mm (1/2") need to specify in advance
- Loading capacity : maximum door weight 40~65kgs (88~143lbs) / 2 carriages
- Hydraulic soft closing stopper provides cushioning against door slamming with below advantages :
- Using hydraulic cylinder with one year warranty
- Consistent closing speed
- Long durability for heavy door bumping, in house tested 200,000 cycles
- Adjustable soft closing pulling force for different door weight
Eco Aluminum Glass Sliding Door System
- Permanent anti-falling , No adjustment required.
- Silent movement
- Easy installation for one man job
- Elegant and compact design (track size 54X58mm) with all hardware hidden inside the track.
- Standard for 5/16" & 3/8" (8 & 10mm) glass, 12mm (1/2") need to specify in advance
- Long durability in-house tested for 200,000 cycles
- Loading capacity : Maximum door weight 40~65kgs (88~143lbs) / 2 carriages
Soft Motion Self Closing Glass Sliding Door System
- Patented in many countries
- Permanent anti-falling , No adjustment required.
- +/-1/8" (3.5mm) height adjustment
- Manually open the door and auto self-closing in soft motion all the way (safe and friendly to handicap /elderly / children).
- Loading capacity max. 65kgs
- Adjustable pulling force for door weight 40~65kgs (88~143lbs)
- Easy installation for one man job
- Elegant and compact design (track size 54X58mm) with all hardware hidden inside the track
- Standard for 5/16" & 3/8" (8 & 10mm) glass, 12mm (1/2") need to specify in advance
