Top and side panel pivot fitting for top pivot clamp FL-860F
FL-872 Top pivot fitting
- All parts in stainless steel
- Glass door countersunk hole
Application Example
Related product
Top pivot fitting for top pivot clamp FL-860F
- All parts in stainless steel
- Glass door countersunk hole
Glass door top hydraulic buffer with narrow base plate
- Patented in many countries
- In-house tested 300,000 cycles
- For indoor use, glass door thickness 10~12mm (3/8"~1/2"), for 8mm (5/16") glass doors use, please specify upon ordering. Max. door width 1000mm (40") , max door weight 80kgs (176lbs) /set
- Adjustable closing speed 4-15 seconds - using with pneumatic (P80) bottom closer
- For double action indoor in 180° opening each side with 90° hold open
- Easy concealed installation (better aesthetics and no need for cement hole on the ground)
- Two functions in one product, no need to use door hinge
- No worry for oil leakage problem

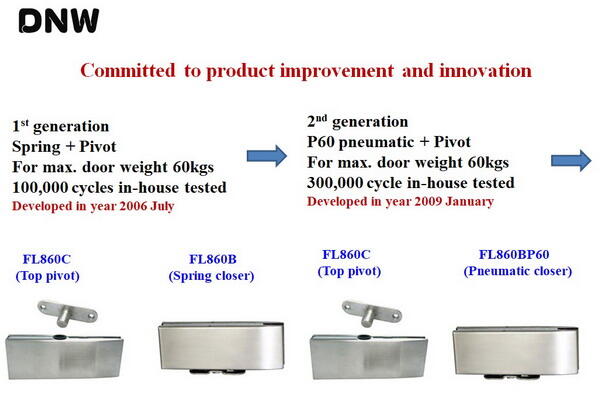

Glass door pneumatic bottom closer with narrow base plate
- Patented in many countries
- In-house tested 200,000 cycles
- For indoor use, glass door thickness 10~12mm (3/8"~1/2"), for 8mm (5/16") glass doors use, please specify upon ordering. Max. door width 915mm (36") , max door weight 60kgs (132lbs) /set
- Adjustable closing force
- For double action indoor in 180° opening each side with 90° hold open
- Easy concealed installation (better aesthetics and no need for cement hole on the ground)
- Two functions in one product, no need to use door hinge
- No worry for oil leakage problem
Glass door spring bottom closer with narrow base plate
- Patented in many countries
- In-house tested 100,000 cycles
- For indoor use, glass door thickness 10~12mm (3/8"~1/2"), for 8mm (5/16") glass doors use, please specify upon ordering. Max. door width 915mm (36"), max. door weight 60kgs(132lbs)/set
- Adjustable closing force
- For double action indoor in 180° opening each side with 90° hold open
- Easy concealed installation (better aesthetics and no need for cement hole on the ground)
- Two functions in one product, no need to use door hinge
- No worry for oil leakage problem

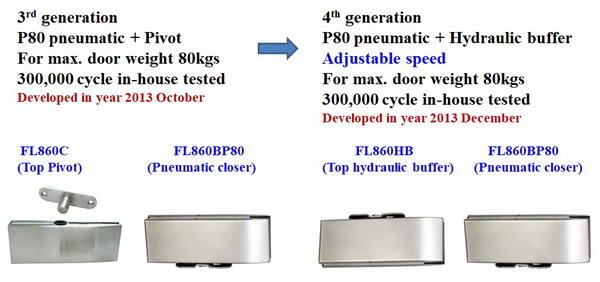

Square design glass door top hydraulic buffer with narrow base plate
- Patented in many countries
- In-house tested 300,000 cycles
- For indoor use, glass door thickness 10~12mm (3/8"~1/2"), for 8mm (5/16") glass doors use, please specify upon ordering. Max. door width 1000mm (40") , max door weight 80kgs (176lbs) /set
- Adjustable closing speed 4-15 seconds - using with pneumatic (P80) bottom closer
- For double action indoor in 180° opening each side with 90° hold open
- Easy concealed installation (better aesthetics and no need for cement hole on the ground)
- Two functions in one product, no need to use door hinge
- No worry for oil leakage problem
Square design glass door pneumatic bottom closer with narrow base plate
- Patented in many countries
- In-house tested 200,000 cycles
- For indoor use, glass door thickness 10~12mm (3/8"~1/2"), for 8mm (5/16") glass doors use, please specify upon ordering. Max. door width 1000mm (40") , max door weight 80kgs (176lbs) /set
- Adjustable closing force (when used together with FL860SB-HB hydraulic buffer)
- For double action indoor in 180° opening each side with 90° hold open
- Easy concealed installation (better aesthetics and no need for cement hole on the ground)
- Two functions in one product, no need to use door hinge
- No worry for oil leakage problem
Square design glass door top pivot clamp
- For indoor use, glass door thickness 10~12mm (3/8"~1/2"), for 8mm (5/16") glass doors use, please specify upon ordering
- Easy concealed installation (better aesthetics and no need for cement hole on the ground)
- Two functions in one product, no need to use door hinge
