Glass Clamps

Glass Clamps

Glass door fittings

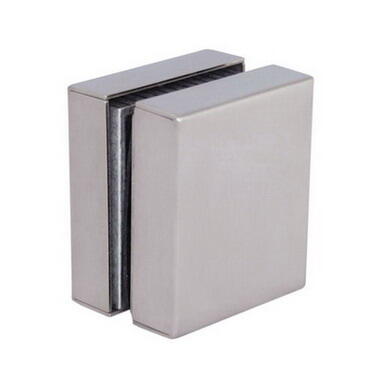

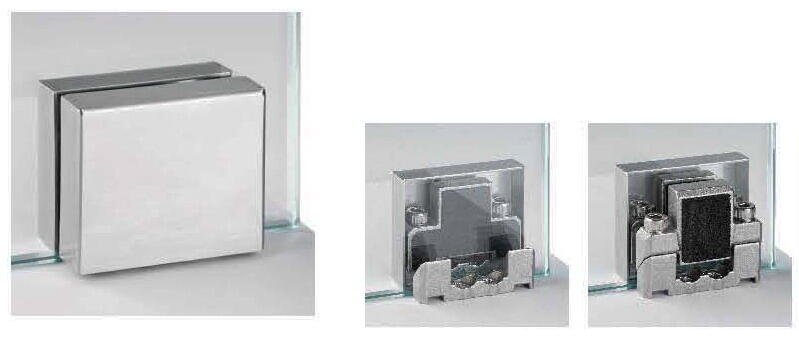

S.S. glass clamps mounted to floor/ wall/ ceiling (no glass cut-out)

S.S. glass clamps mounted to floor/ wall/ ceiling (no glass cut-out)

  • No glass thickness limit
  • International patented
  • All parts in stainless steel
  • Easy installation and cost saving
  • Lateral holding force 500kgs (1,100lbs) per pair (piece each side) provided by properly tightening all mounting screws  Suggest to use ST4.2 X 35mm tapping screws with nylon plug 6mm dia.
  • Different materials and finishes of cover are available:
    - Stainless steel cover in hairline or bright finish
    - Aluminum material in brushed clear anodized or color paint

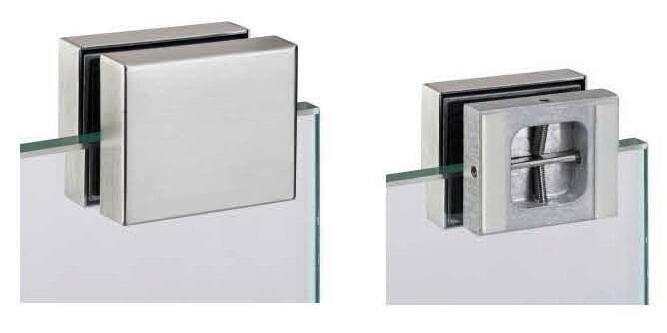

S.S. glass to glass clamps (no glass cut-out)

S.S. glass to glass clamps (no glass cut-out)

  • Thickness 8 to 12mm (5/16"~1/2") without changing gasket or screws
  • Easy installation and cost saving
  • Lateral holding force 200kgs (440lbs) per pair (piece each side)
    Recommend to use together with SC-001 or aluminum rail on top/bottom
  • Different materials and finishes of cover are available:
    - Stainless steel cover in hairline or bright finish
    - Aluminum material in brushed clear anodized or color paint

Aluminum adjustable glass clamp (no glass cut-out)

Aluminum adjustable glass clamp (no glass cut-out)

  • Thickness 6 to 12mm without changing gasket or screws
  • Adjustable anti-clockwise reinforced screws
  • Material: aluminum ADC12
  • Size: 55mm L X 55mm H X 17mm (bottom thickness)
  • Holding force: 35kgs per clamp
  • Re-inforced pin RP-115 or S.S. support SS-01 or SS-02 are also available for heavier loading.
Aluminum adjustable glass clamp (no glass cut-out)

Aluminum adjustable glass clamp (no glass cut-out)

  • Thickness 6 to 12mm without changing gasket or screws
  • Adjustable anti-clockwise reinforced screws
  • Material: aluminum ADC12
  • Size: 55mm L X 55mm H X 17mm (bottom thickness)
  • Holding force: 35kgs per clamp
  • Re-inforced pin RP-115 or S.S. support SS-01 or SS-02 are also available for heavier loading.
Aluminum adjustable glass clamp (no glass cut-out)

Aluminum adjustable glass clamp (no glass cut-out)

  • With radius base for round bar, 20mm or 25mm
  • Thickness 6 to 12mm without changing gasket or screws
  • Adjustable anti-clockwise reinforced screws
  • Material: aluminum ADC12
  • Size: 57mm L X 55mm H X 19mm (bottom thickness) X R 20mm or 25mm
  • Holding force: 35kgs per clamp
  • Re-inforced pin RP-115 or S.S. support SS-01 or SS-02 are also available for heavier loading.
Zinc or stainless steel adjustable glass clamp (no glass cut-out)

Zinc or stainless steel adjustable glass clamp (no glass cut-out)

  • Thickness 6 to 12mm without changing gasket or screws
  • Adjustable anti-clockwise reinforced screws
  • Material: ZC-100 is zinc alloy and SS-101 is stainless steel 304 or 316
  • Size: 55mm L X 55mm H X 17mm (bottom thickness)
  • Holding force: 35kgs per clamp
  • Re-inforced pin RP-115 is available to ZC-100 for heavier loading.
Zinc or stainless steel adjustable glass clamp (no glass cut-out)

Zinc or stainless steel adjustable glass clamp (no glass cut-out)

  • Thickness 6 to 12mm without changing gasket or screws
  • Adjustable anti-clockwise reinforced screws
  • Material: ZC-200 is zinc alloy and SS-102 is stainless steel 304 or 316
  • Size: 55mm L X 55mm H X 17mm (bottom thickness)
  • Holding force: 35kgs per clamp
Zinc adjustable glass clamp (no glass cut-out)

Zinc adjustable glass clamp (no glass cut-out)

  • With radius base for round bar, 20mm or 25mm
  • Thickness 6 to 12mm without changing gasket or screws
  • Adjustable anti-clockwise reinforced screws
  • Material: Zinc alloy
  • Size: 57mm L X 55mm H X 19mm (bottom thickness) X R 20mm or 25mm
  • Holding force: 35kgs per clamp.
